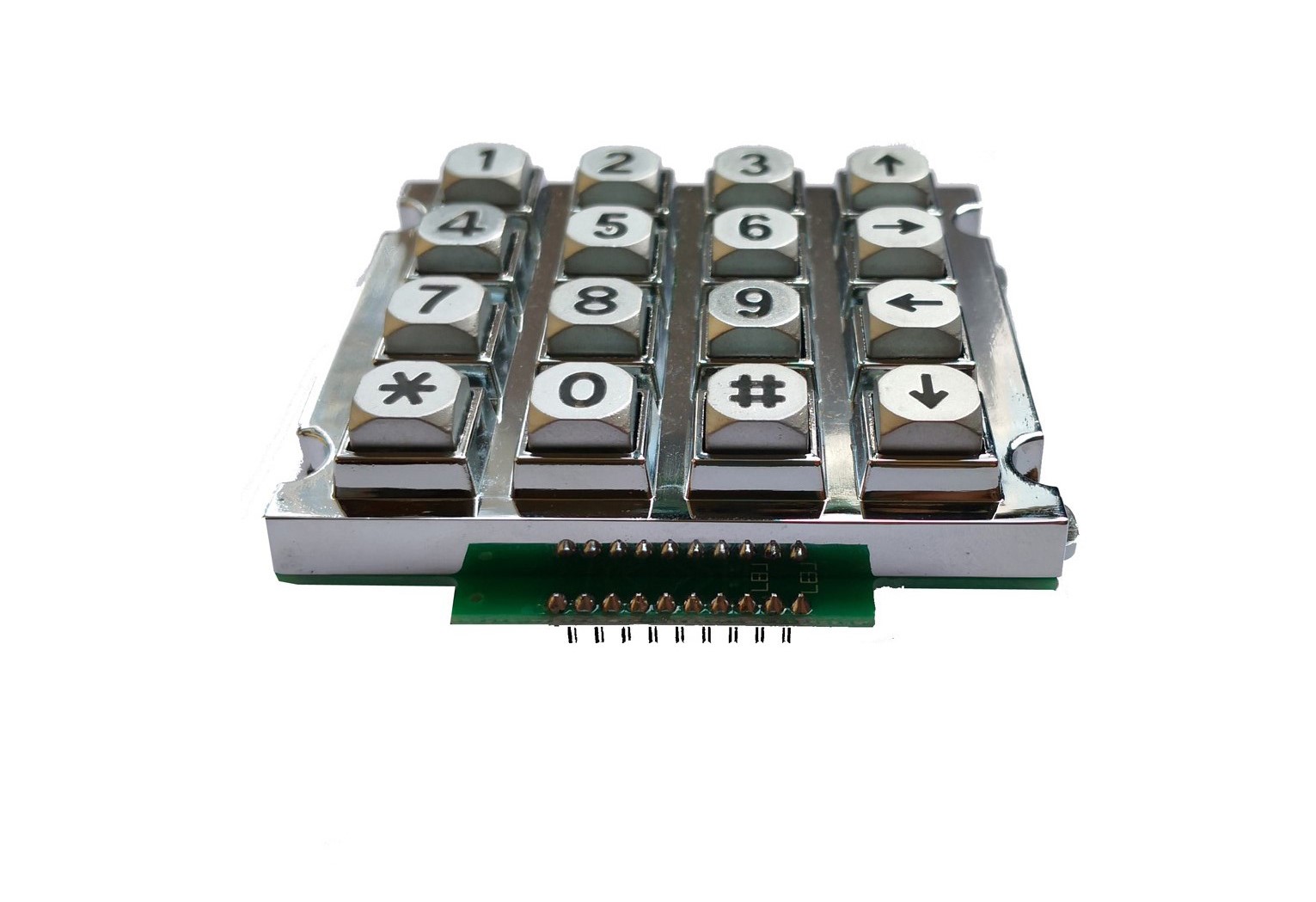

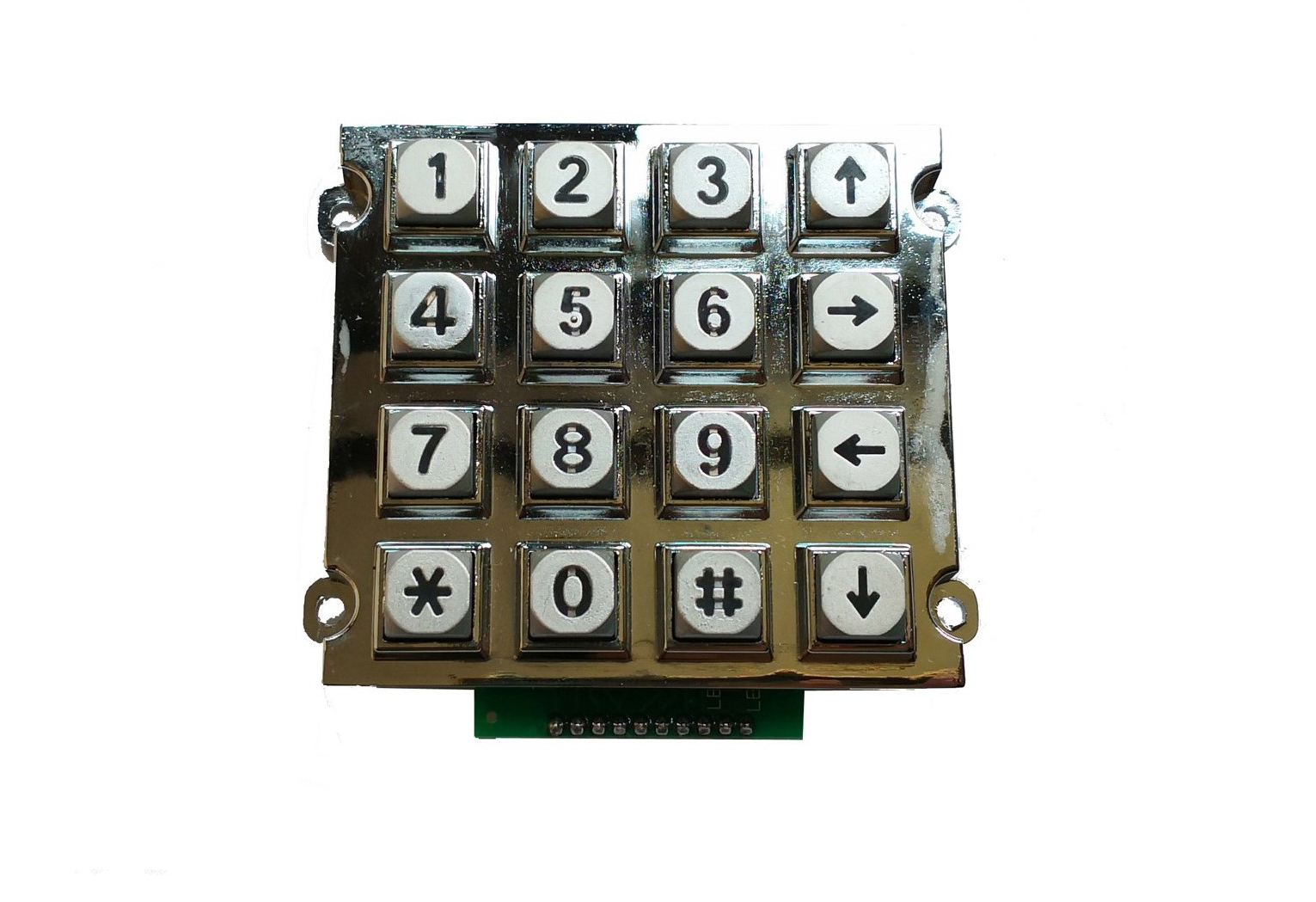

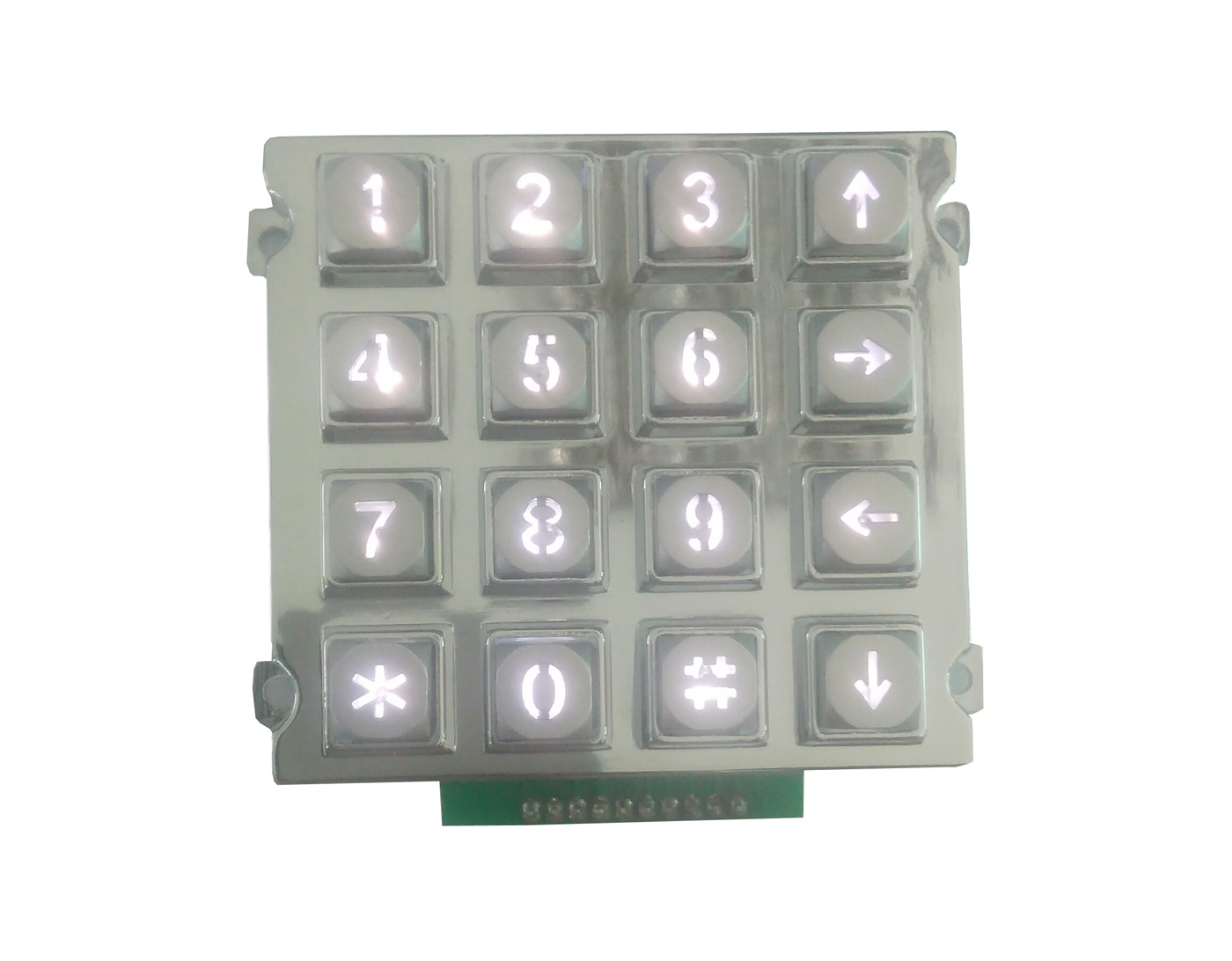

white lighting matrix keypad P-76BL

Description

• 4 x 4 layout, Matrix numeric keypad with 10 digital keys and 6 function key buttons for industry use

• Zinc alloy chromed frame and key buttons, Backlit keys, Vandal resistant

• Backlight colors are optional, like blue, red, white, and green

• Natural silicone rubber conductor

• Weatherproof, corrosion resistance, Aging resistance industrial number keypad

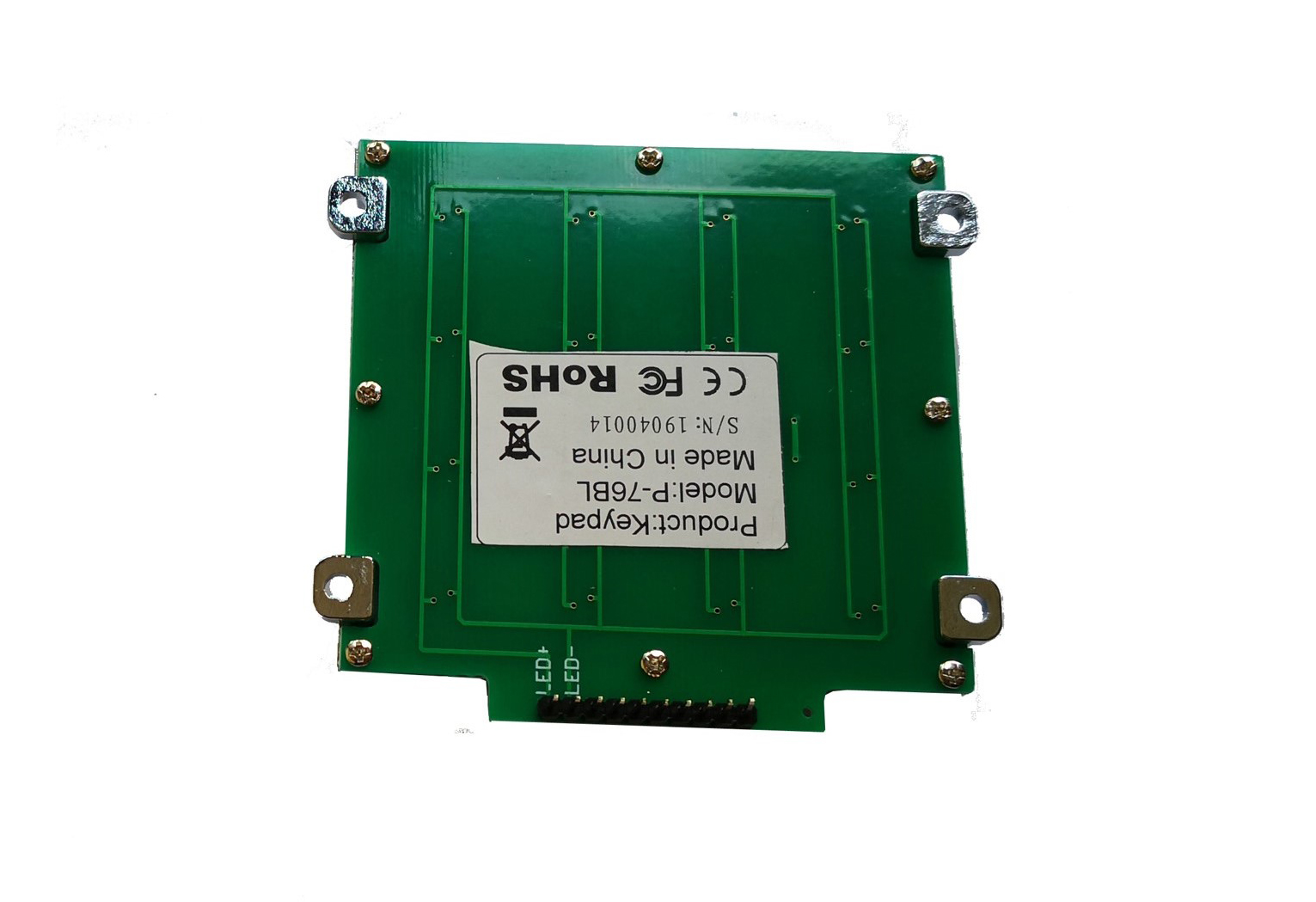

• Double-sided for printed circuit board

• Chemical gold plated and reliable contact

• LED voltage: 3V

• Contact resistance: ∠100Ω

• Switch life: more than 10 million of operations

• Operating temperature: -30℃ ~+70℃

• Storage temperature: -40℃ ～ +80 ℃

• Protection Level: IP65(front panel)

• Carton size: 420 x 350 x 115mm

• Mounting Dimension: 76 x 50.5mm

• Gross Weight: 0.4kg
