door phone keypad with illumination P-51BL

green white backlight Taiwan numeric keypad with dot matrix diagram for door phone

Description

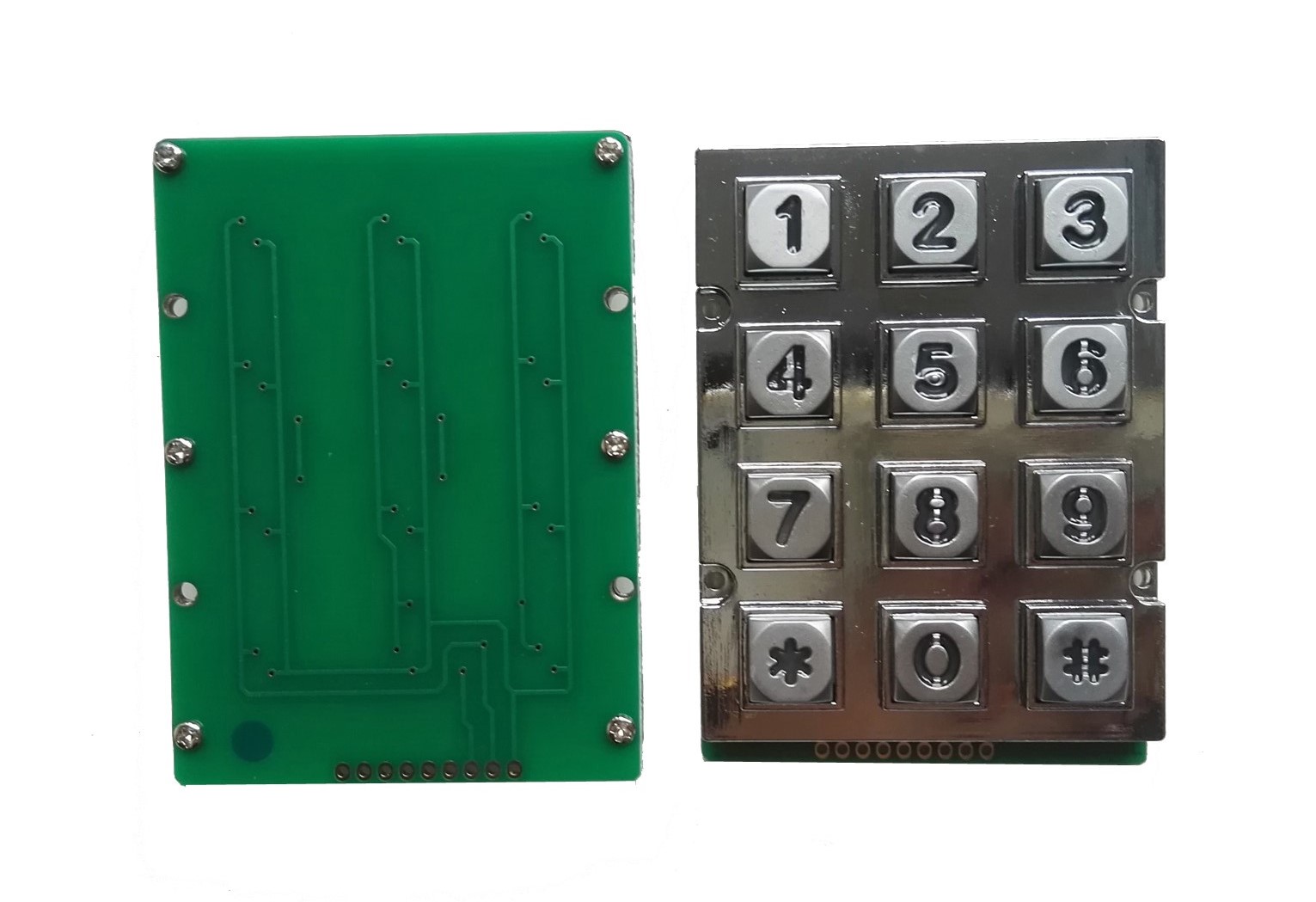

  • 3 x 4 IP65 dot matrix keypad, 10 numbers, 2 function keys, for the door phone access control application keypad

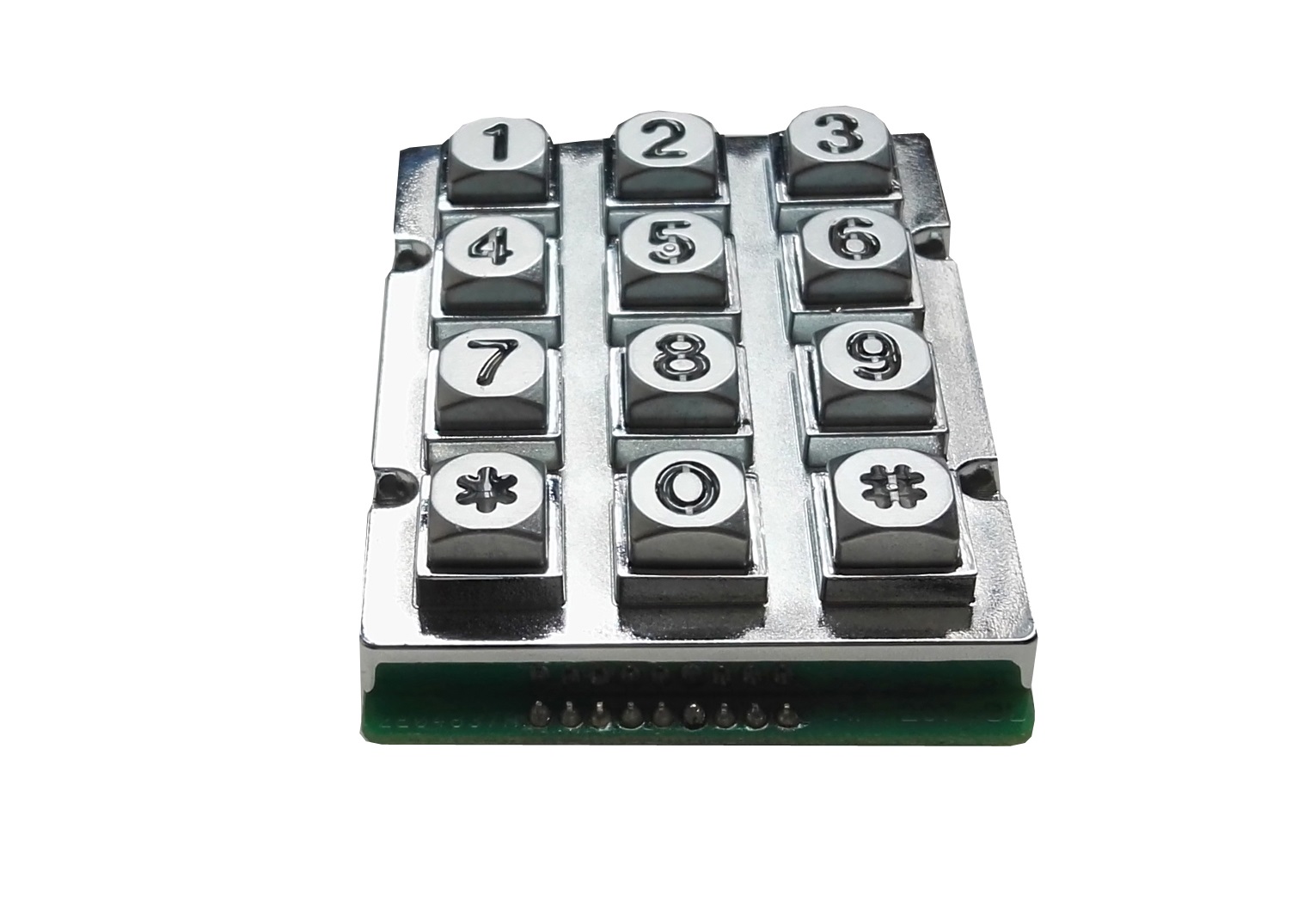

  • Zinc alloy chromed frame and zinc alloy key buttons, backlit keys, vandal resistant, with good casting performance, complex die-cast shapes can be made, and the casting surface is very smooth
  • The layout can be customized upon customer’s request

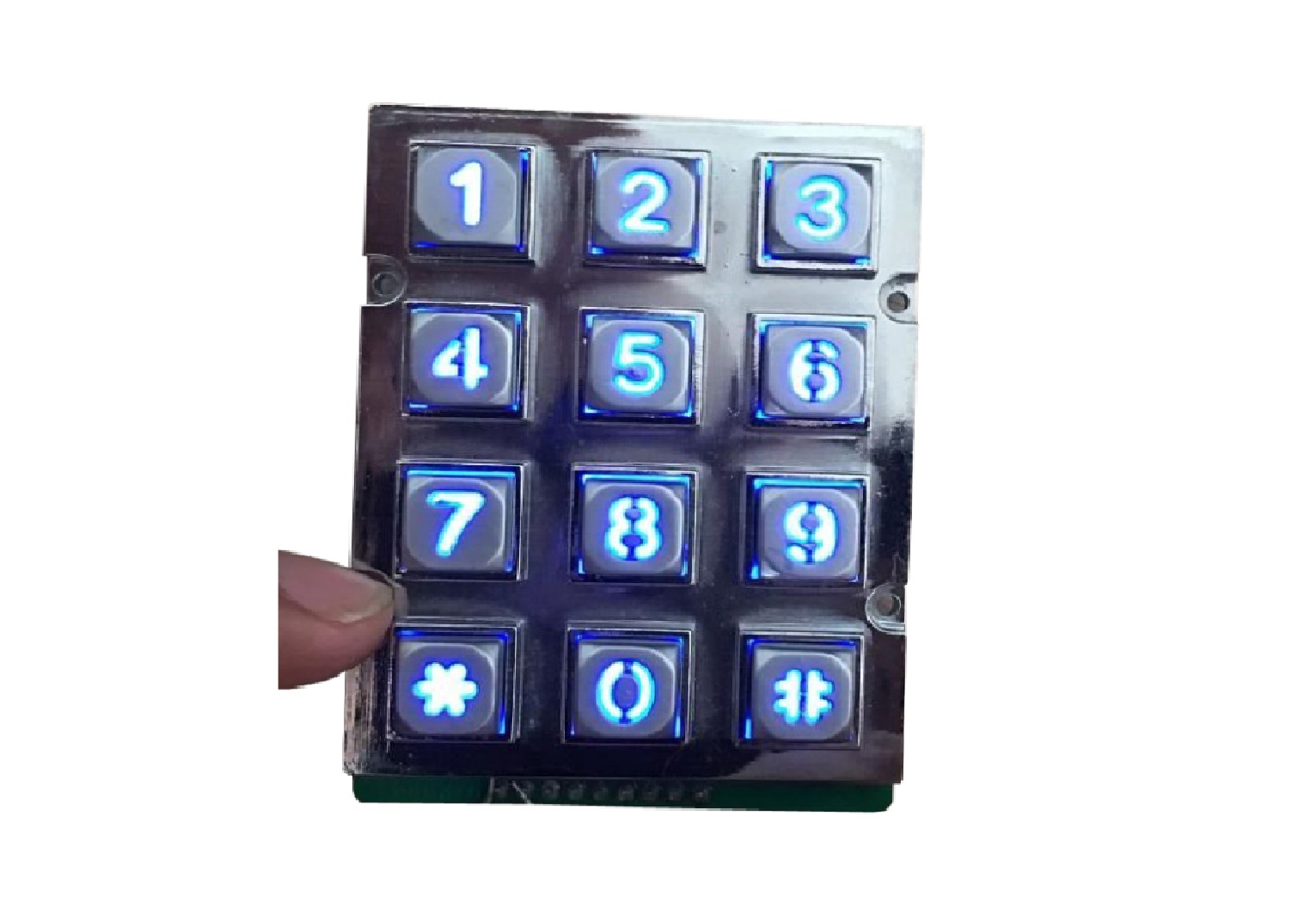

  • Backlit colors are optional, like blue, white, green and red etc.
  • Weatherproof, corrosion resistance, aging resistance
  • Chemical gold plated and reliable contact
  • LED voltage: 2.8V for the blue backlit, 9V for the white backlit
  • Switch life: more than 10 million of operations
  • Operating temperature: -20℃ ~+60℃
  • Storage temperature: -40℃ ~ +80 ℃
  • Front panel dimension: 56 x 72.0mm
  • Gross Weight: 0.3kg
  • CE, FCC, RoHS compliance

Applications

It can be used in access control system, security system, public telephone system, digital lock systems, cabinet security, public service, ATM, self-service terminal, vending machine etc.
