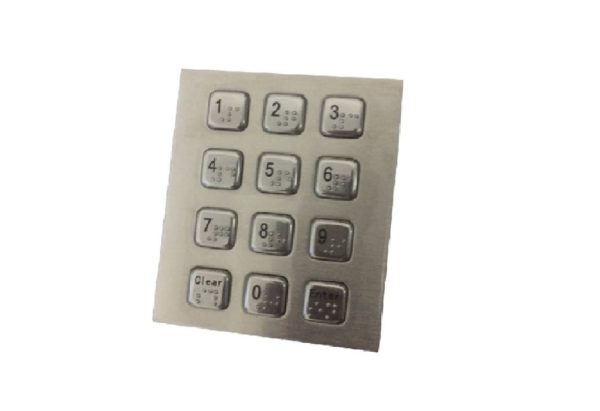

Braille numeric keypad P-71BR

Vandal-proof stainless steel numeric keypad with raised Braille dots

Description

  • Braille numeric keypad made of stainless steel, vandal resistance with top/front panel mounted solution

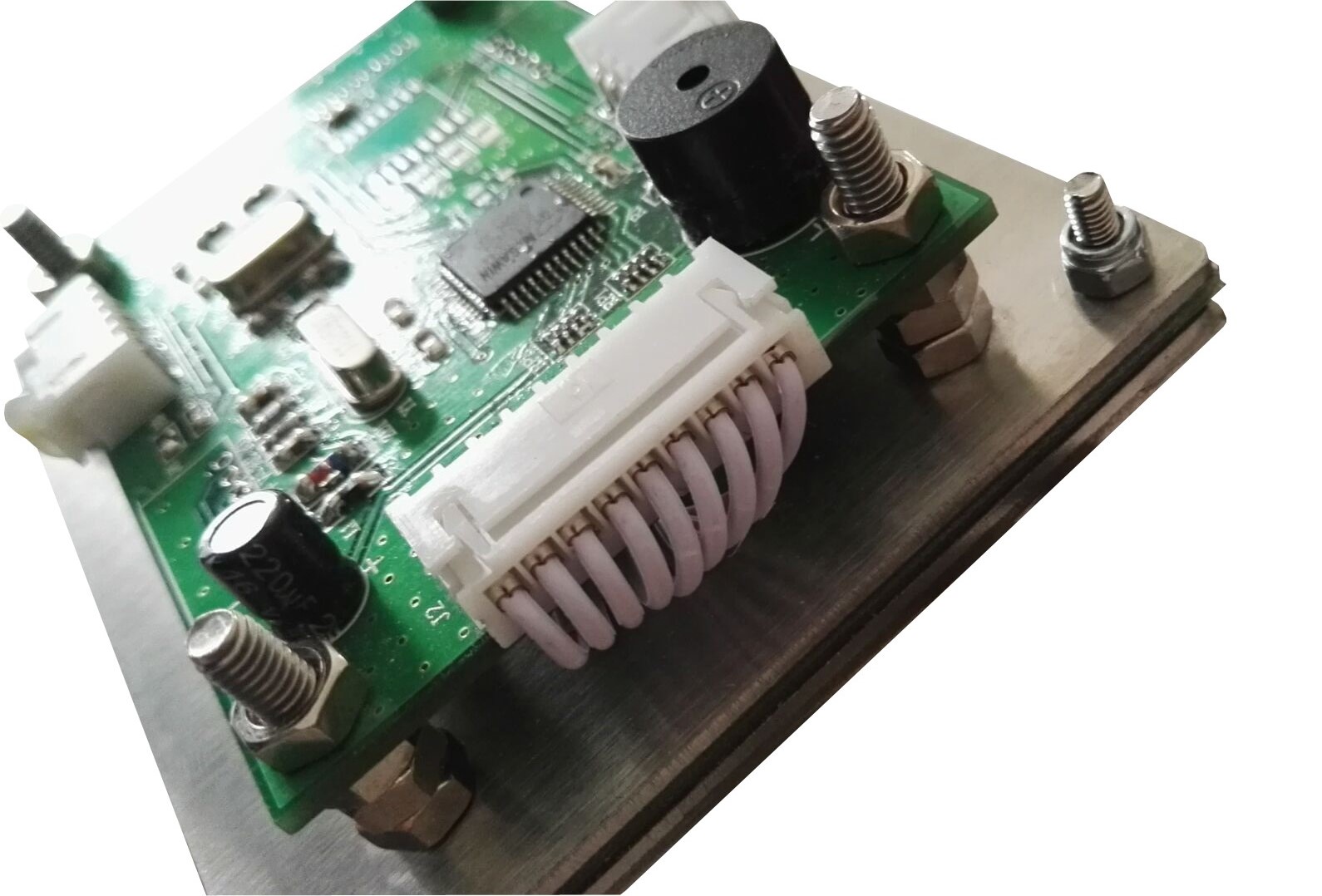

  • Rear panel mounted optional keypad
  • With special protuberant, Braille dots keypad
  • Water proof, corrosion resistance, ageing resistance
  • With Braille dots optional
  • 3 x 4 dot matrix design with XH modular interface, 10 number buttons and 2 function buttons, or 4 x 3
  • USB/PS2/RS232/RS485/UART TTL optional
  • Any custom layout is available
  • CE, FCC, ROHS approved
  • Life span≥2 million
  • Elasticity of key: 0.9N
  • Key traveling distance: long stroke 2.0mm
  • Operate Temperature: -20~+60℃
  • Relative humidity: 30%–90%RH
  • Storage Temperature: -40~+85℃
  • Relative humidity: 20%–95%
  • Defend grade: IP65
  • Keypad Applications:

for terminals
kiosk
vending machine
console
access control
petrol station, ATM, public phone etc. public areas.
