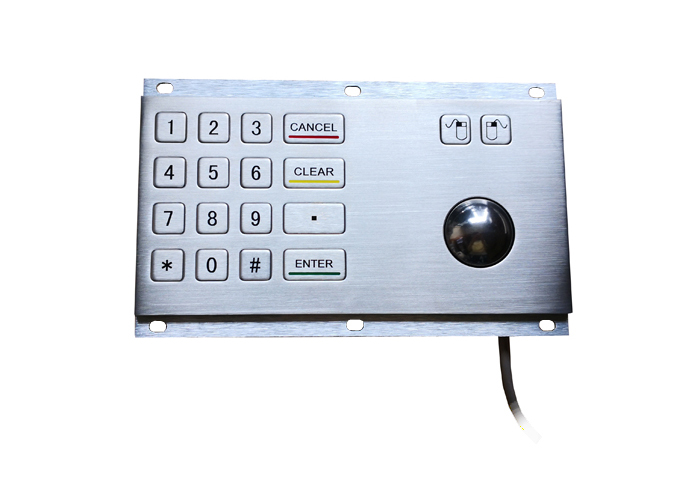

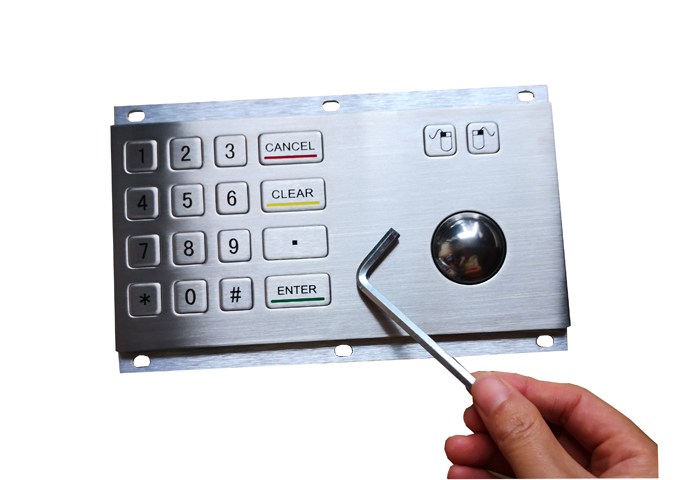

metal keypad with trackball P-100KP-OTB

IP65 mechanical metal numeric keypad with 18 key and optical trackball mouse


  • It is a stainless steel metal numeric keypad with IP65 sealing with industrial PCB electronics controller
  • Industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input
  • Lettering: laser engraving, durable and vandal proof buttons

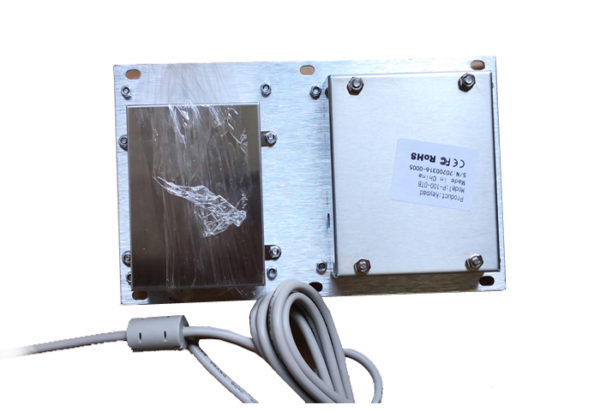

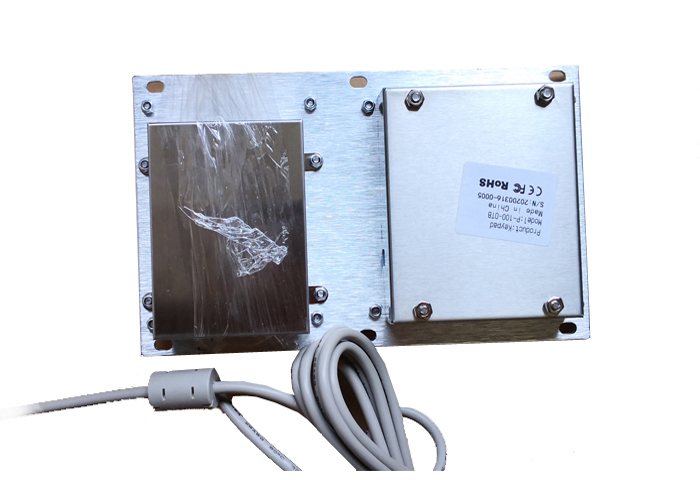

  • Mounting holes on rear metal plate for rear mounting solution
  • USB, PS2, RS232, UART TTL or dot matrix interface keypad
  • Front panel: 100 x 196mm
  • Gross weight: 1KG
  • Switch life: more than 5 million of operation
  • Power supply voltage: 5V DC+/-5%
  • Any customs layout is available upon request with different colors on each button

This industrial numeric metal keypad with trackball is targeted for

  • Unsupervised or semi -supervised positions of varied access applications,
  • Information kiosks at public places: shopping malls, hotels, airports, railway stations etc.,
  • Ticket vending machines, petrol stations, cash machines (ATMs), IP public phones etc.
  • Defense industry and so on
