backlit industrial keypad with beeping P-77BL

Description

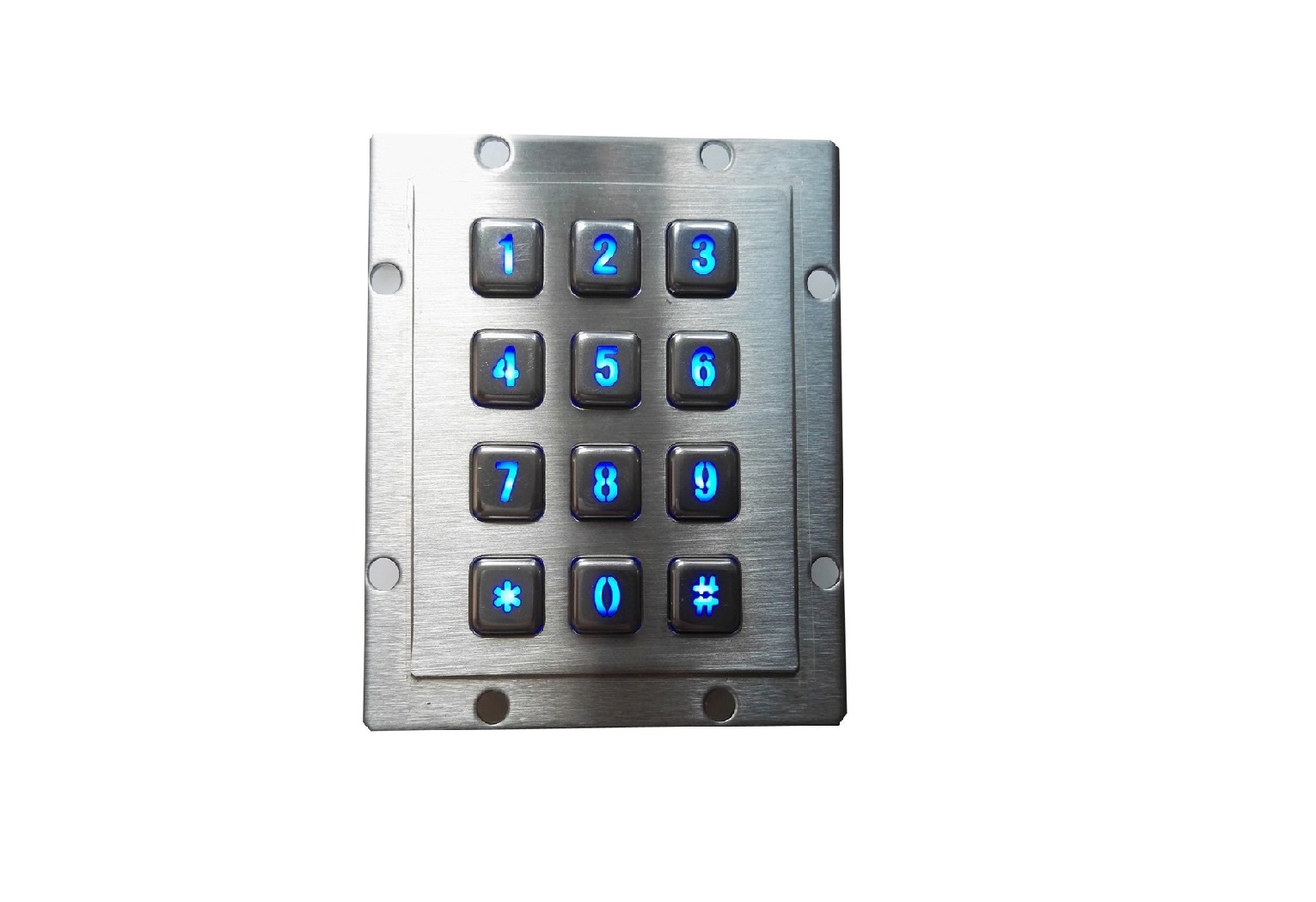

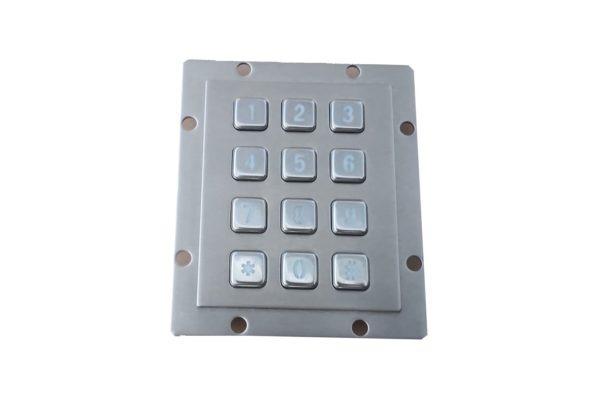

• Compact design with 12 key backlit numeric keypad with high quality stainless steel S304

• Specially designed for harsh environment, use the brushed stainless steel material, and special water proof design,

• IP 65 protect level industrial keypad, which  has good performance of water proof, dust proof and vandalism proof, making it a good choice for public use or harsh environment.

• Gold-on-gold dome on gold PCB contact

• Keypad interface: USB, PS2, RS232, or dot matrix optional

• Laser engraved characters for excellent durable

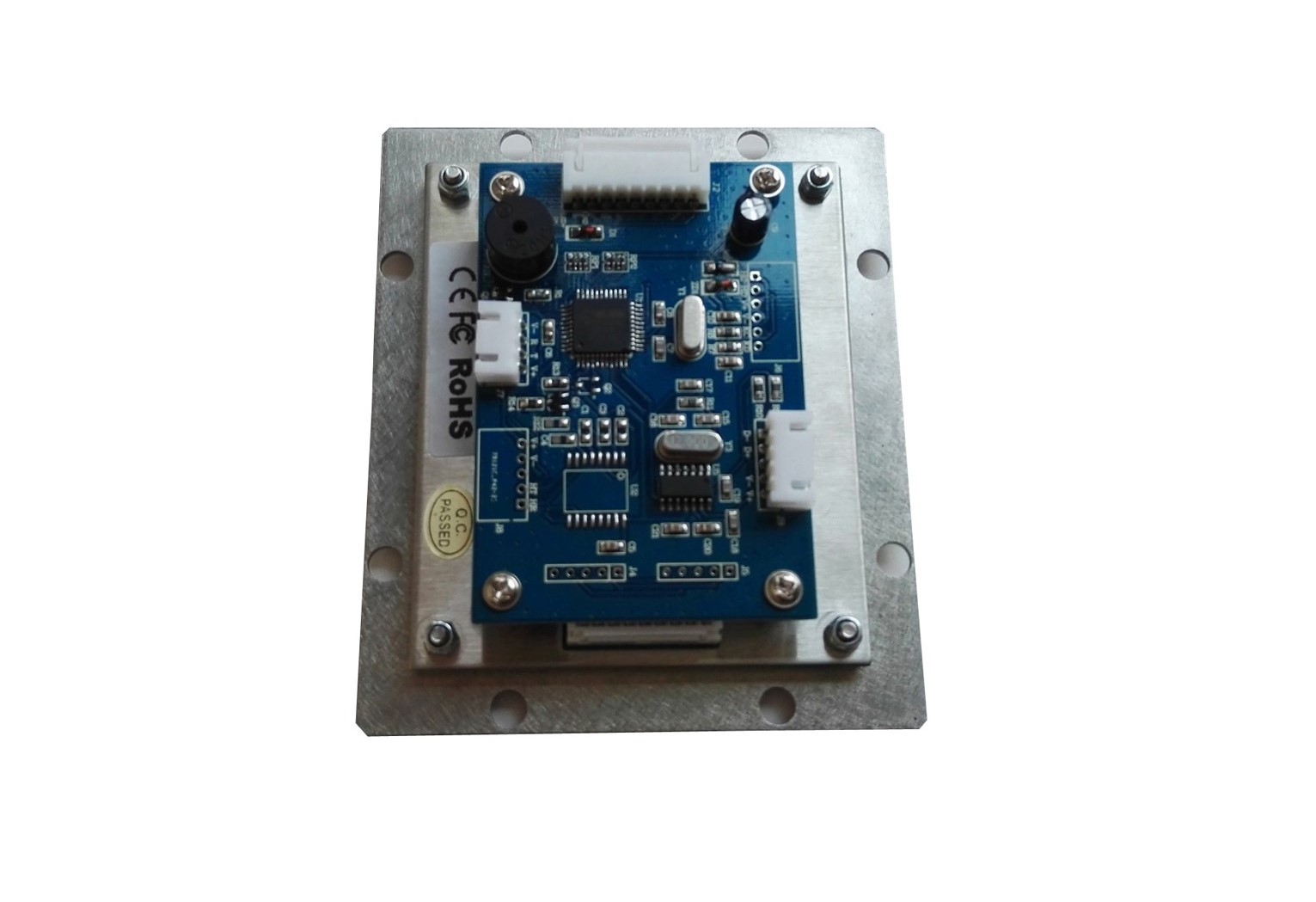

• Reinforced PCB to guarantee the mechanical stability

• Any language is available without additional charge

• Key travel: long stroke of 2.0mm

• Keys witch lifespan: more than 3 million of operations

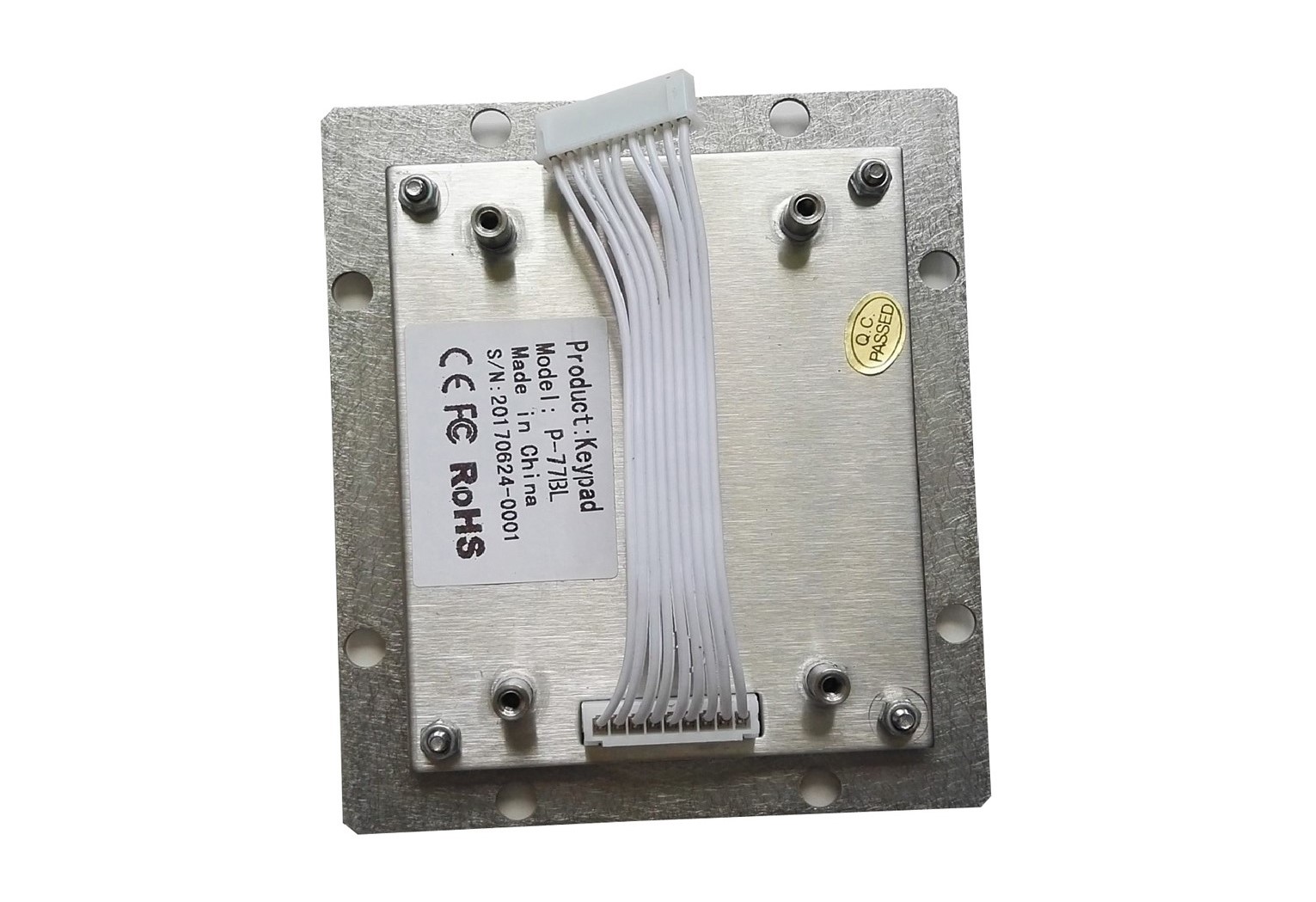

• Mounting solution: rear panel mounting with 4 mounting holes for easy installation

• Dimensions: 76.5 x 92.0 (front panel)

• Voltage: +5V DC or customs

• Protection Level: IP65

• Operating temperature: -30℃ ~+70℃

• Storage temperature: -40℃ ～ +80 ℃

Applications

It is for the door access control system, security system, public telephone system, digital lock systems, cabinet security, public service, ATM, self-service terminal, vending machine etc.
