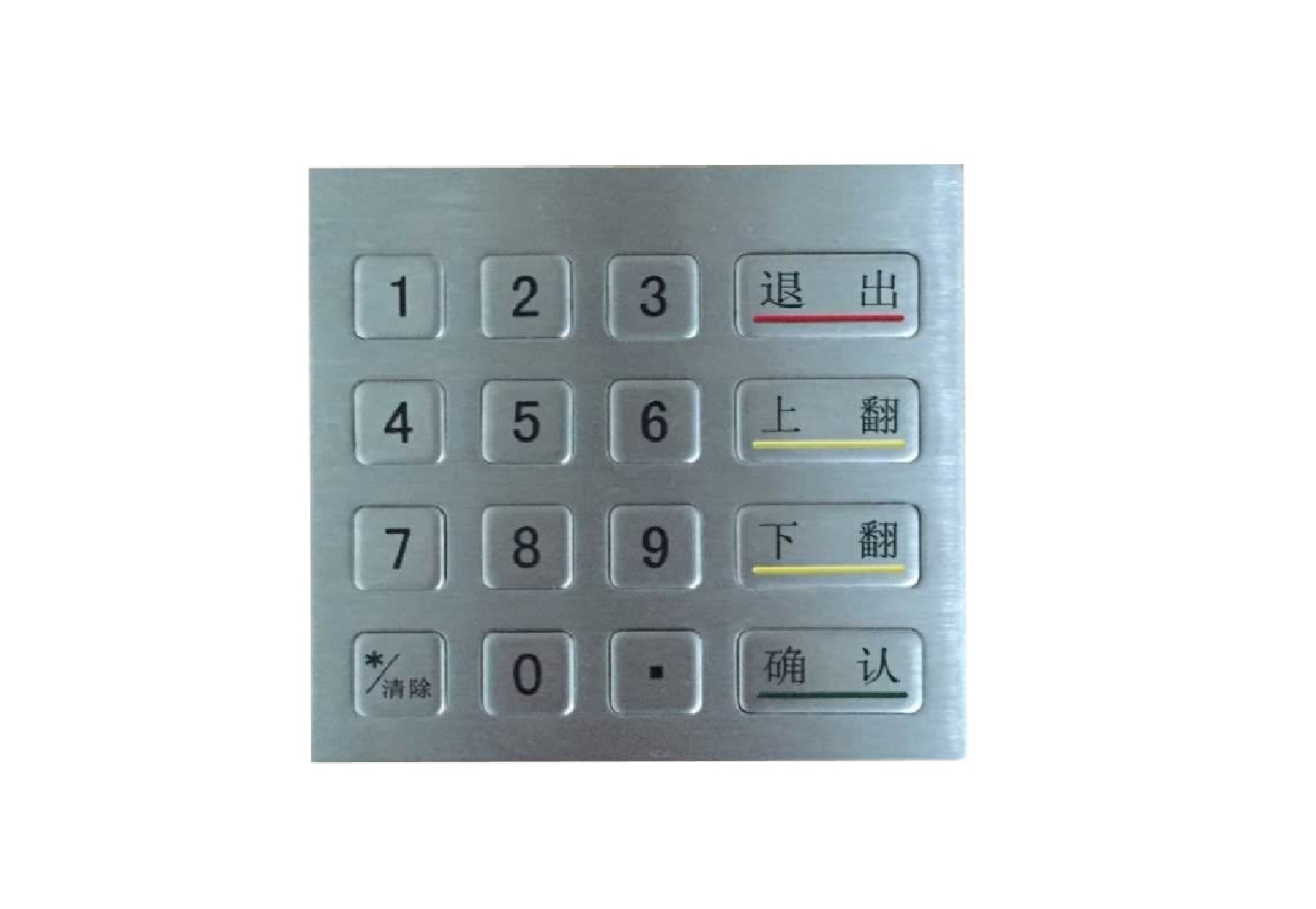

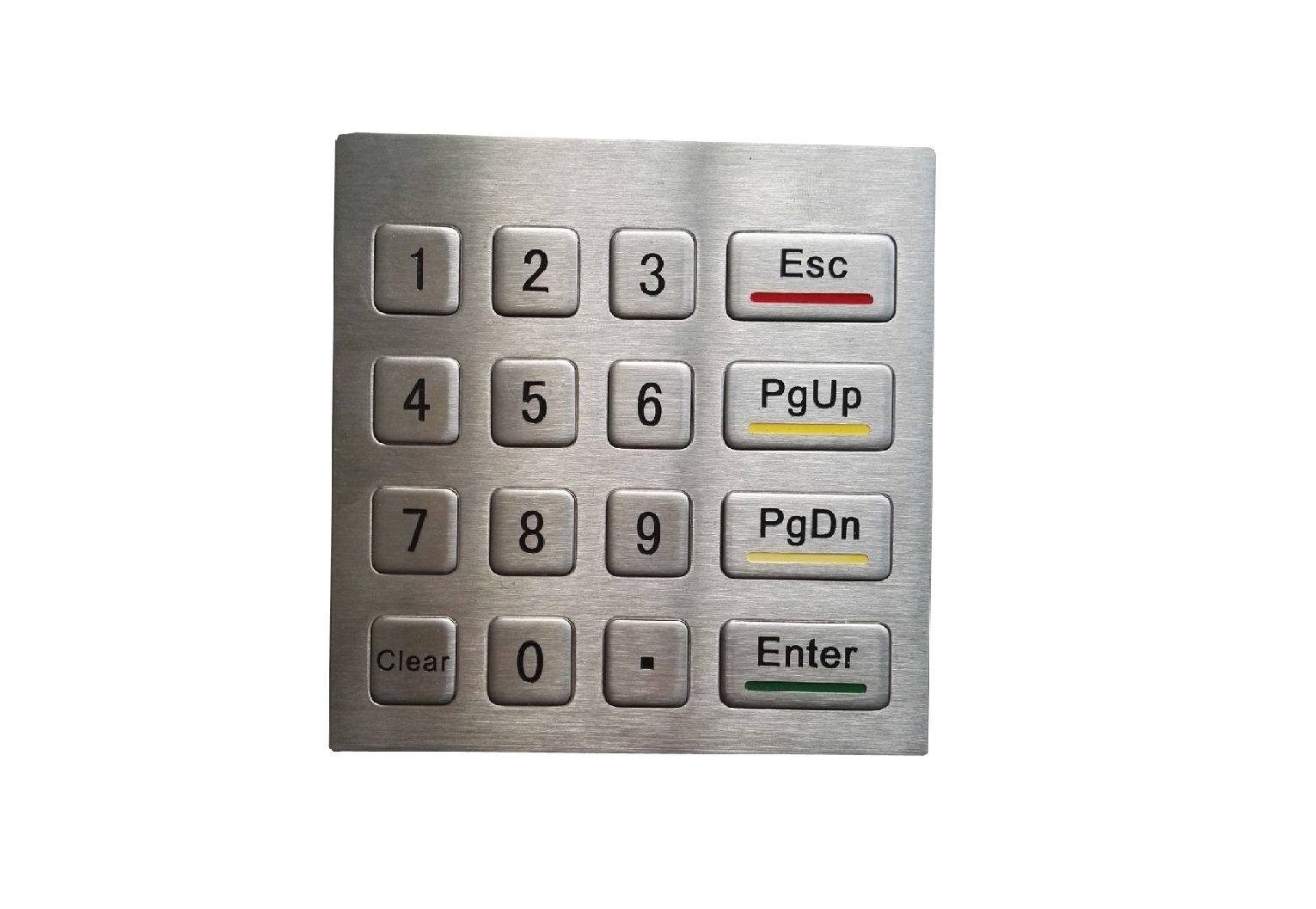

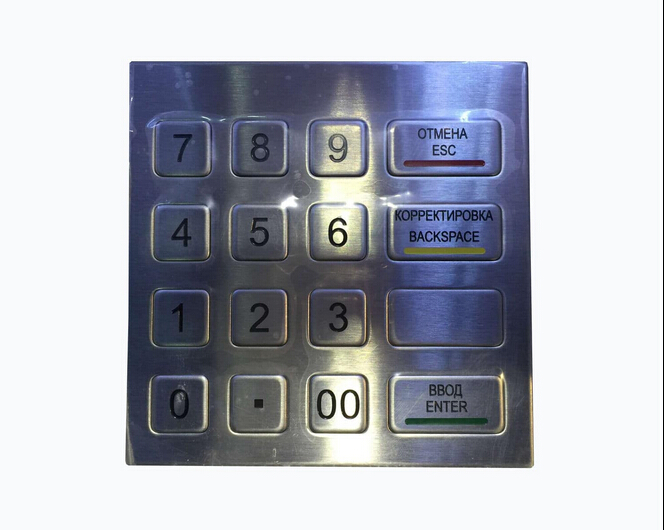

flush-mount numeric keypad P-100KP-F

Description

• 4 x 4 16 keys IP65 compact format vandal proof stainless steel industrial numeric keypad with industrial PCB electronics controller

• Industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input

• Lettering: laser engraving, or raised letters with Braille dots

• Front panel mounting solution / flush-mount solution

• Rear panel mounting numeric keypad is optional

• USB, PS2, RS232, UART TTL or dot matrix keypad

• Front panel: 100 x 100mm

• Gross weight: 0.7KG

• Switch life: more than 5 million of operation

• Power supply voltage: 5V DC+/-5%

• Any customs layout is available upon request with different colors

Applications

This industrial numeric keypad is mainly targeted for:

1. Unsupervised or semi -supervised positions of varied access applications,

2. Internet terminals and information kiosks at universities,

3. Shopping malls, hotels, airports, railway stations and other public areas,

4. Ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
