Description
IP65 Taiwan circuit diagram zinc alloy industrial metal keypad with 12 numeric keys for door access control
-

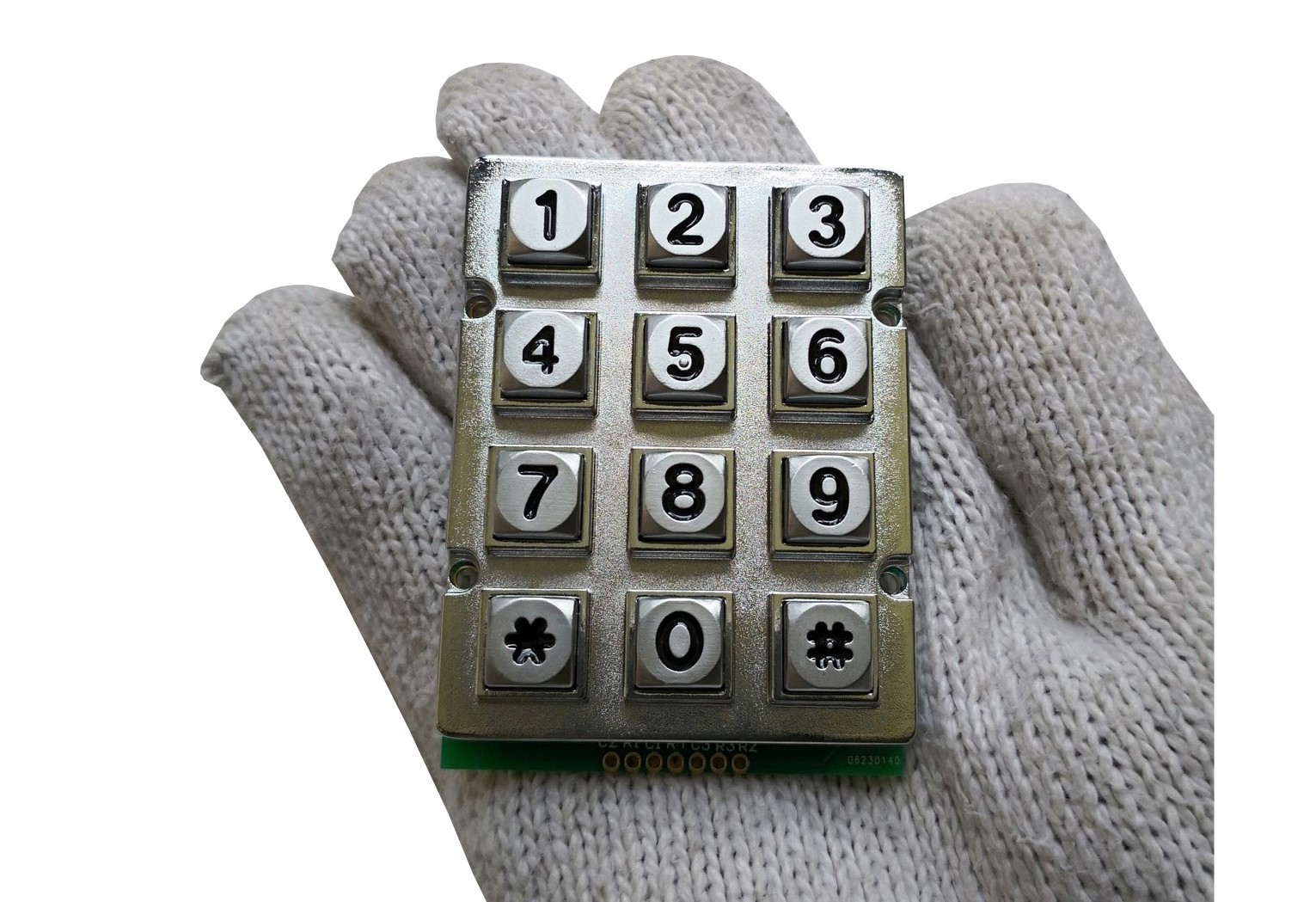

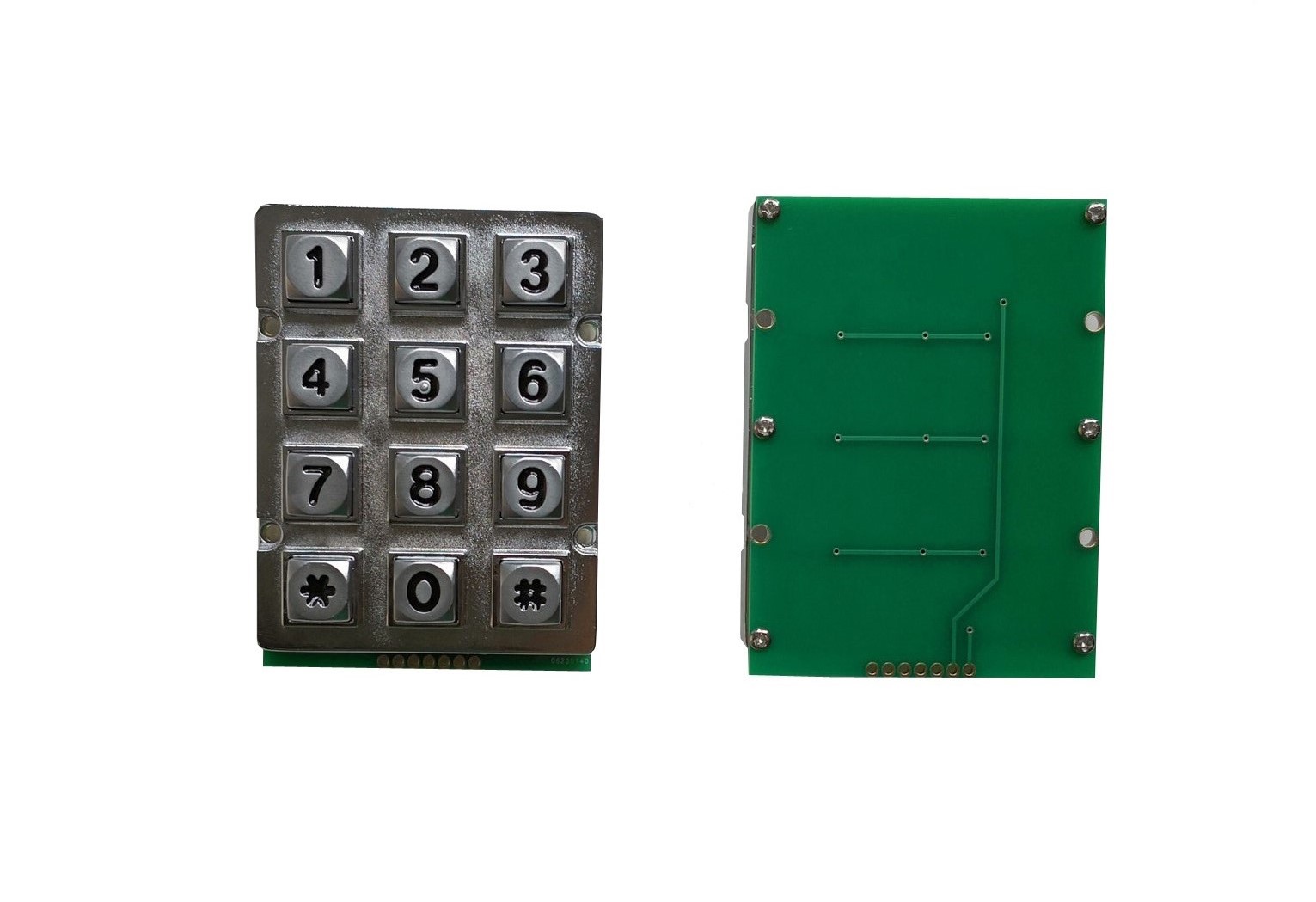

3 x 4 IP65 dot matrix keypad, 10 numbers, 2 function keys
-

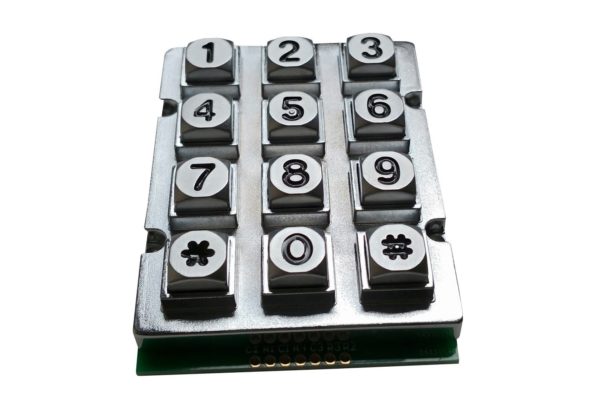

Zinc alloy chromed frame and zinc alloy key buttons, non-backlight keys but with black color for characters, vandal resistant, with good casting performance, complex die-cast shapes can be made, and the casting surface is very smooth
-
The layout can be customized upon customer’s request
-
Weatherproof, corrosion resistance, aging resistance
-

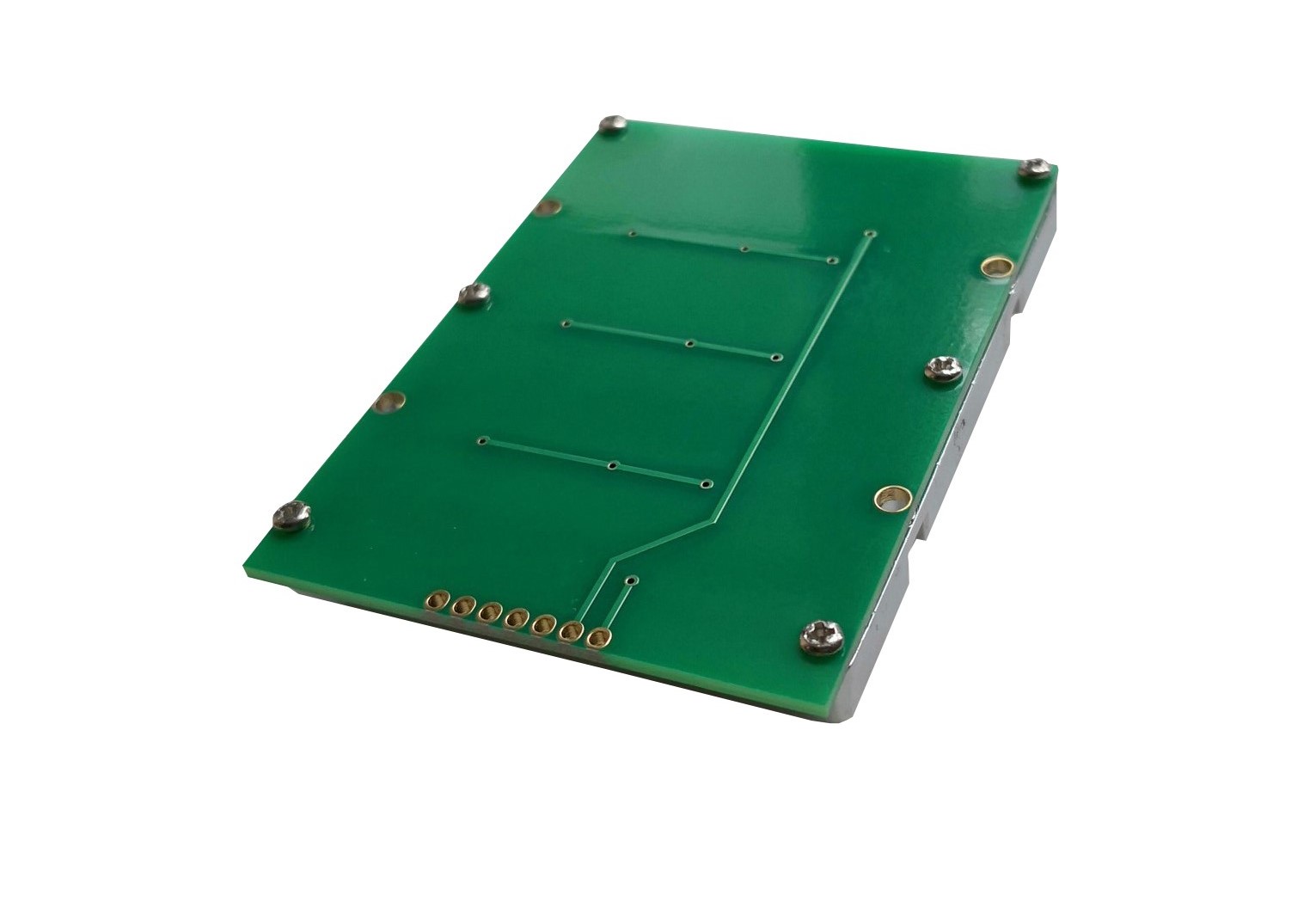

Chemical gold plated and reliable contact
-
Operating temperature: -20℃ ~+60℃
-
Storage temperature: -30℃~ +70 ℃
-
Front panel dimension: 56 x72.0mm
-
Gross Weight: 0.3kg
-
With standard white box and brown carton
-
CE, FCC, RoHS compliance
-
Backlight is optional upon request
Applications
It can be used in access control system, security system, public telephone system, digital lock systems, cabinet security, public service, ATM, self-service terminal, vending machine etc.
Quick questions:
Quotation term: EXW |
Warranty: 1 year |
Customs development: available |
