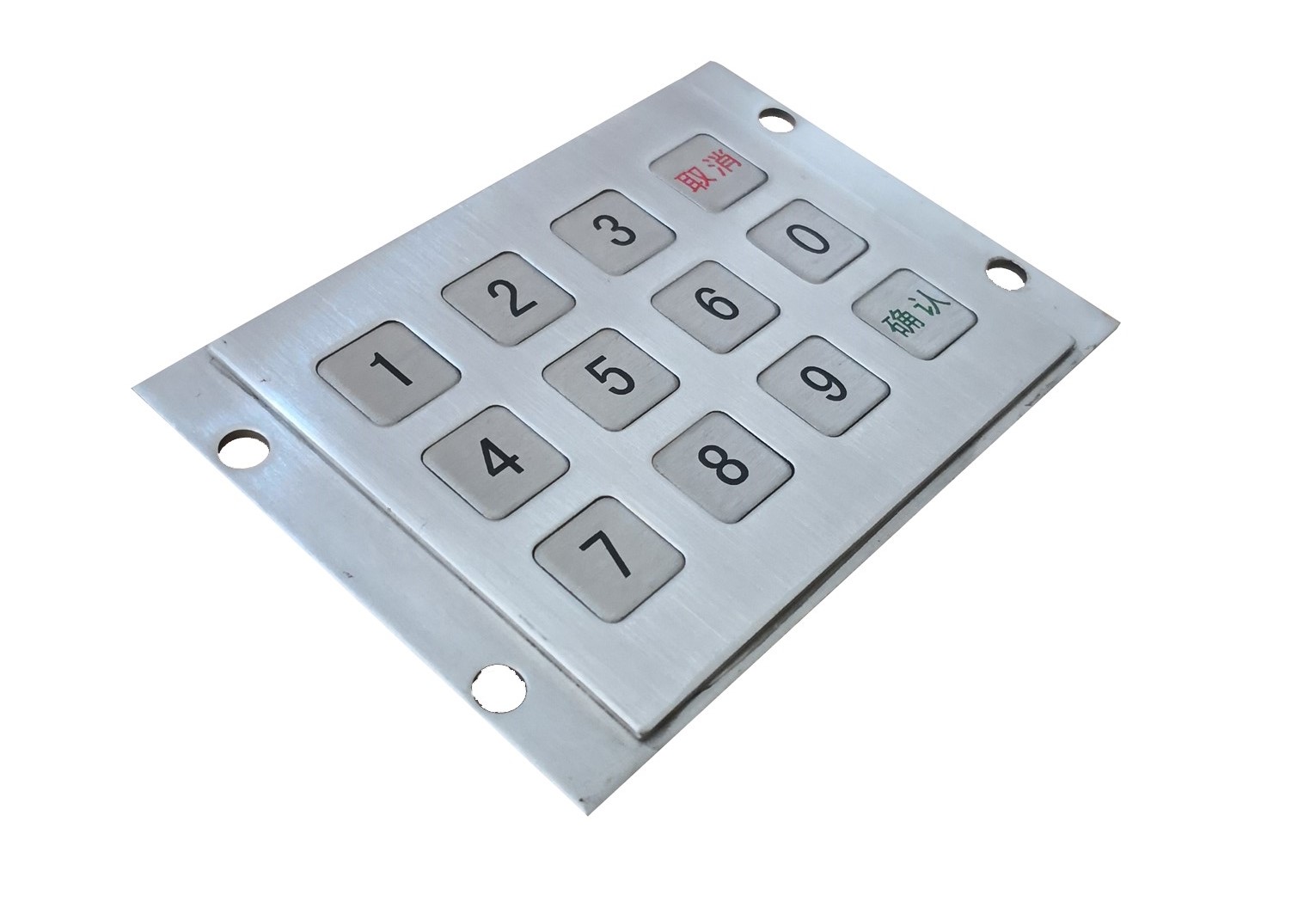

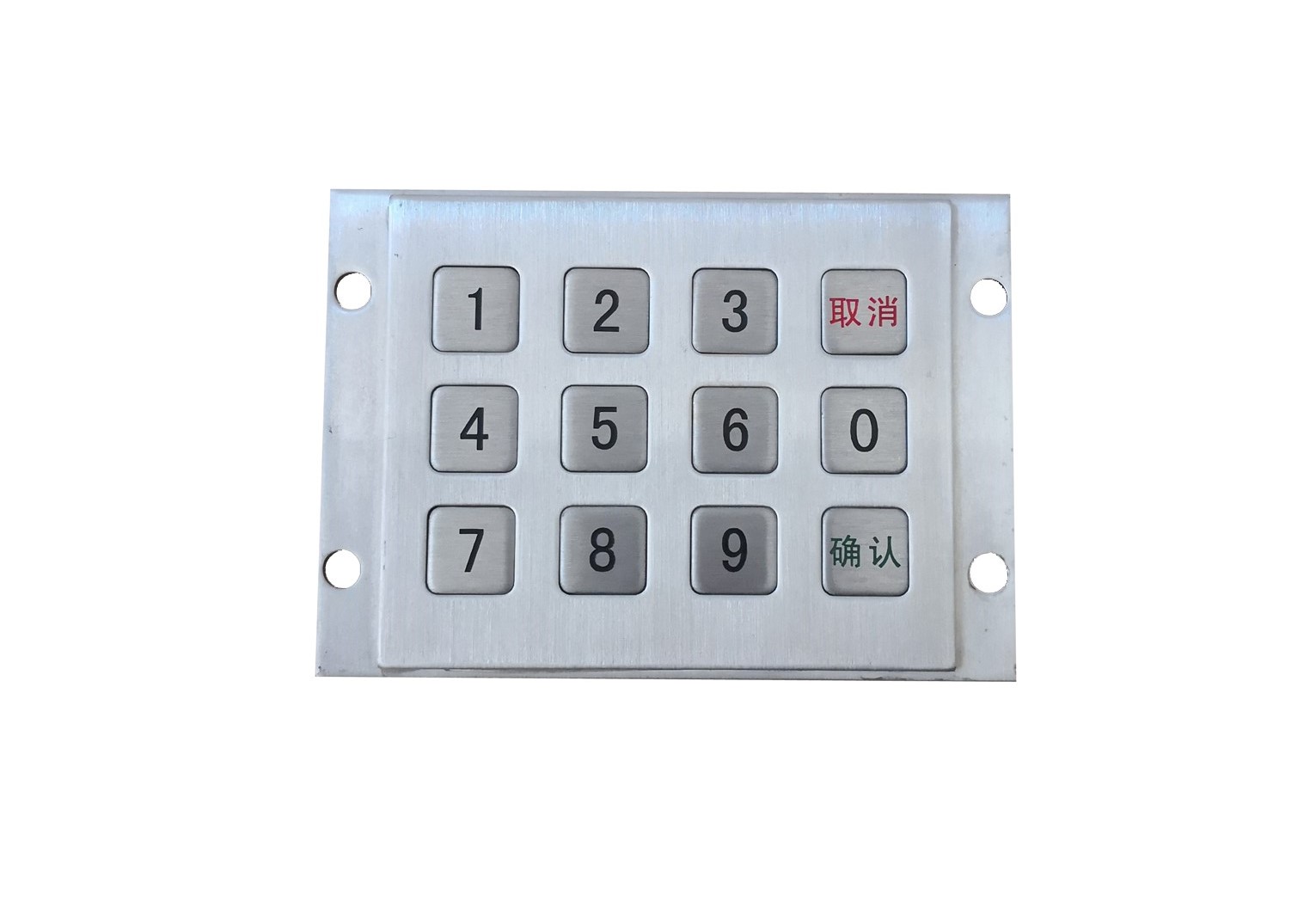

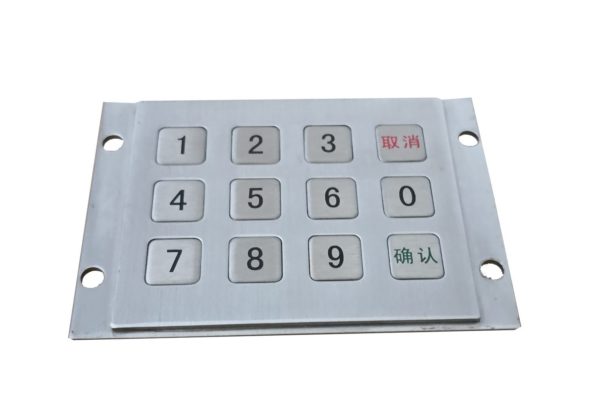

4 x 3 numeric keypad P-70KP-HR

4 x 3 horizontal numeric metal keypad with flat metal keys and 4 holes


  • Compact design with 4 x 3 12 keys numeric keypad horizontally, with high quality stainless steel S304
  • Specially designed for harsh environment, use the brushed stainless steel material, and special water proof design
  • IP 65 protect level, it has good performance of water proof, dust proof and vandalism proof, which make it a good choice for public use or harsh environment.
  • Gold-on-gold dome on gold PCB contact
  • USB, PS2, RS232, or dot matrix interface optional
  • Laser engraved characters for excellent durable

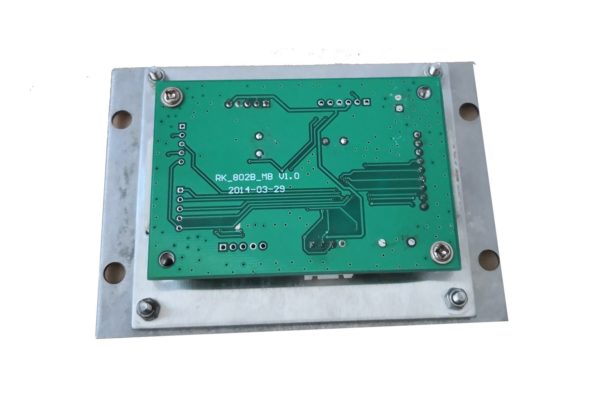

  • Reinforced PCB to guarantee the mechanical stability
  • Any language is available without additional charge
  • Key travel: 0.45 mm short stroke
  • Keys witch lifespan: more than 3 million of operations
  • Mounting solution: rear panel mounting with 4 mounting holes
  • Dimensions: 70 x 110 (front panel)
  • Voltage: +5V DC
  • Operating temperature: -20 ~+60
  • Storage temperature: -40℃ ~ +80
  • All PAC keyboard mouse are CE FCC ROHS approval
