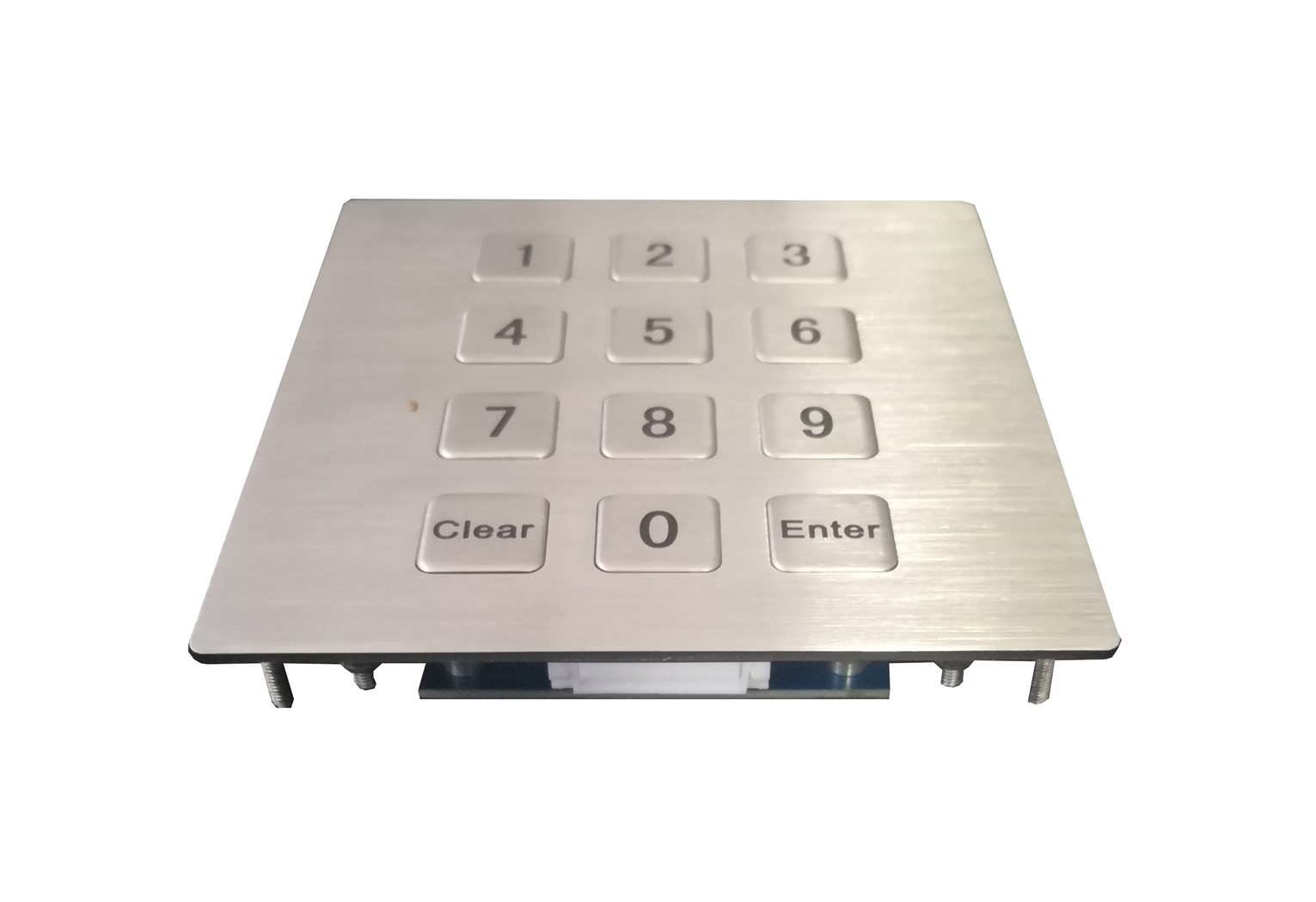

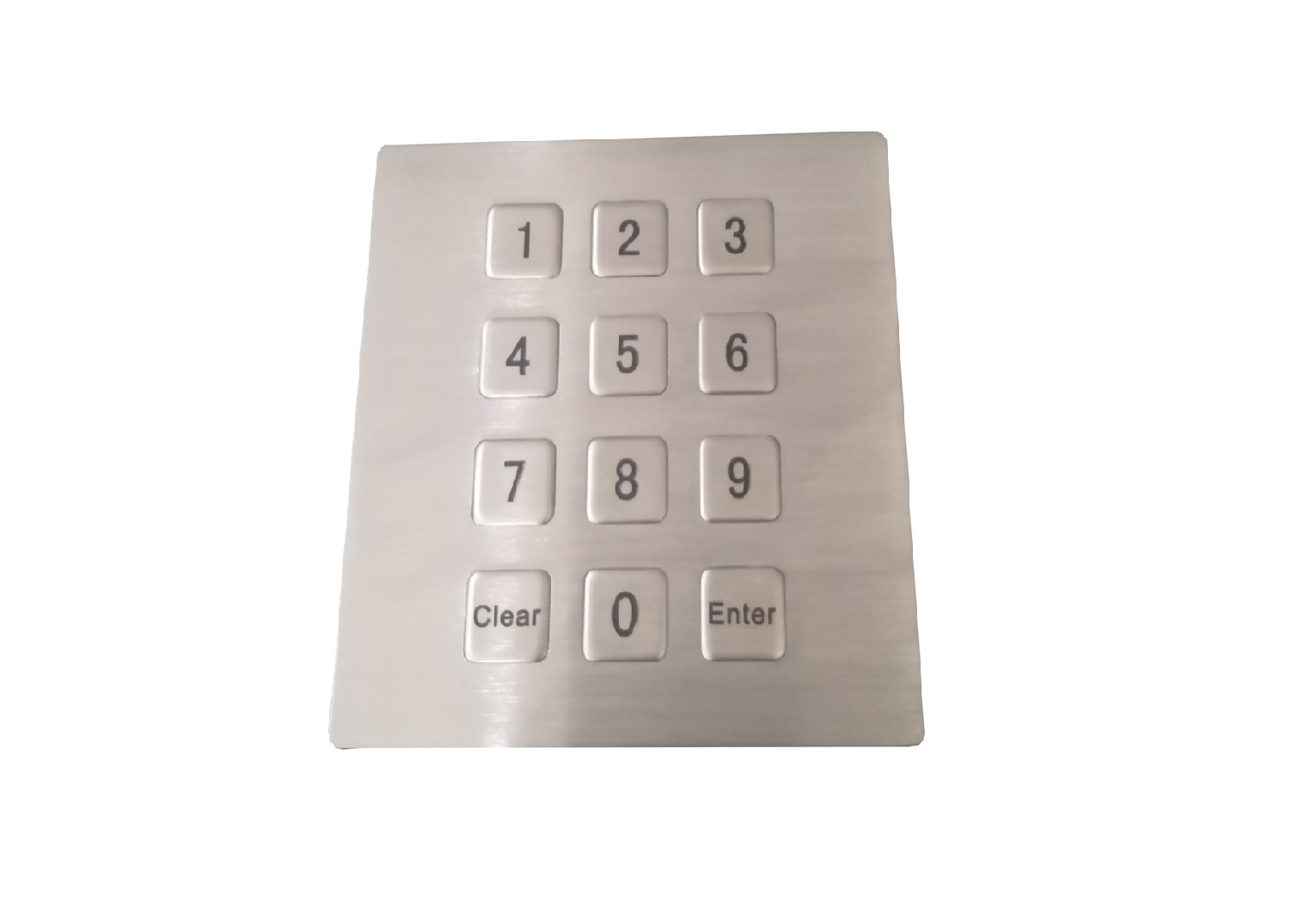

front panel mount numeric keypad P-96KP

embedded front panel mount industrial numeric keypad with flat 12 buttons


Front panel mounted design with 12 keys industrial numeric keypad, with high quality stainless steel S304 material. The keypad is with USB or PS2 cable, plug and play. Friendly and compact design. Specially designed for harsh environment, use the brushed stainless steel material, and special water proof design, IP 65 protect level, it has good performance of water proof, dust proof and vandalism proof, which make it a good choice for public use or harsh environment.

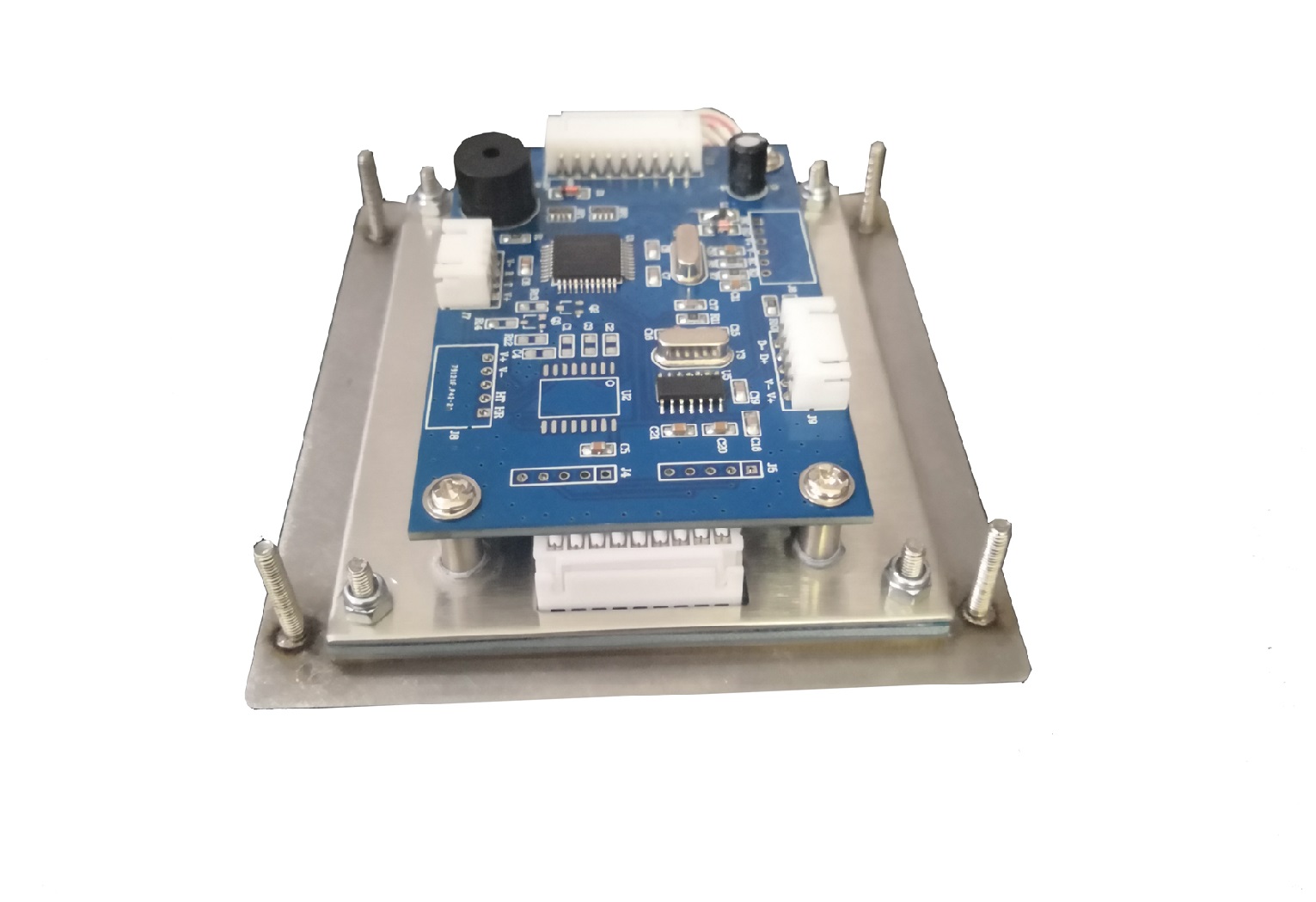

  • Gold-on-gold dome on gold PCB contact, front panel mount stainless steel numeric keypad with 12 keys
  • USB, PS2, RS232, or dot matrix interface optional
  • Laser engraved characters for excellent durable
  • Reinforced PCB to guarantee the mechanical stability
  • Any language is available without additional charge
  • Key travel:0.45 mm short stroke
  • Keys witch lifespan: more than 5 million of operations
  •  Mounting solution: front panel mounting with studs / top panel mounting
  • Dimensions: 96 x 102 (front panel)
  • Voltage: +5V DC
  • Protection Level: IP65
  • Operating temperature: -20 ~+60
  • Storage temperature: -40℃ ~ +80
