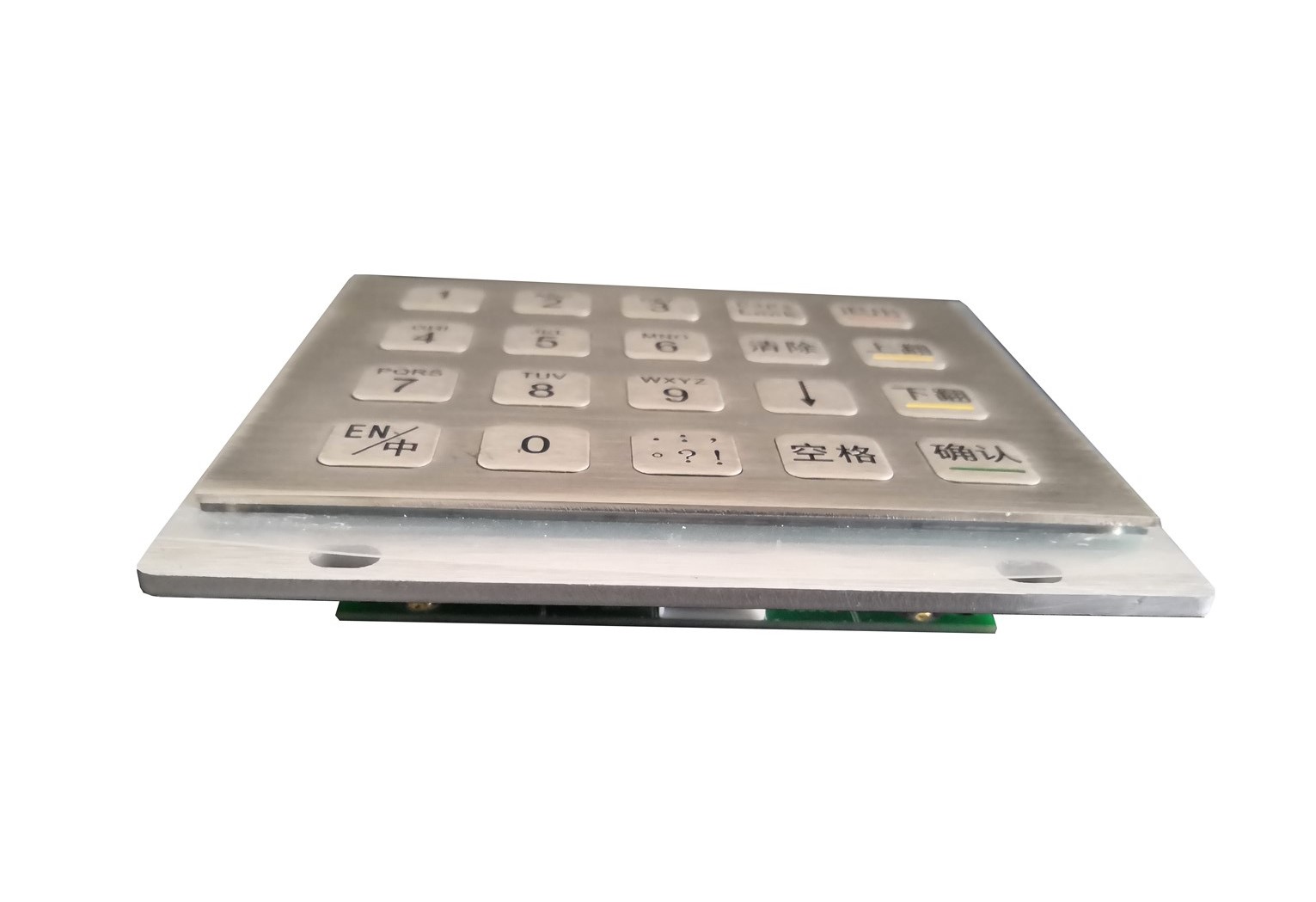

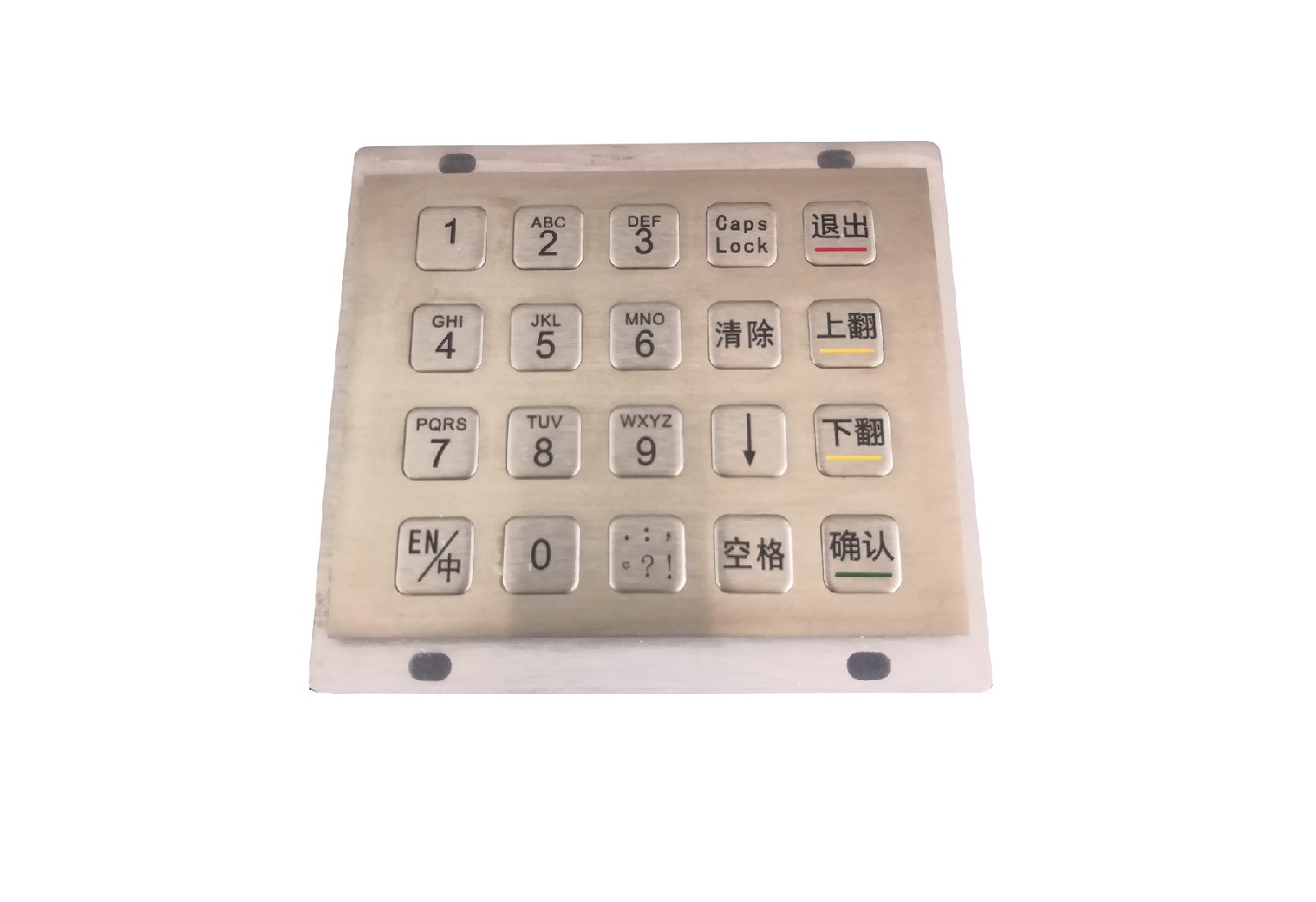

20 key numeric switch keypad P-115KP

20 keys industrial numeric keypad with flat buttons IP65 protection


Vandal proof stainless steel 20 keys numeric keypad with rear panel mount, with 4 holes. Non-illuminated industrial metal switch  keypad with 20 key, USB , PS2, RS232 interface.

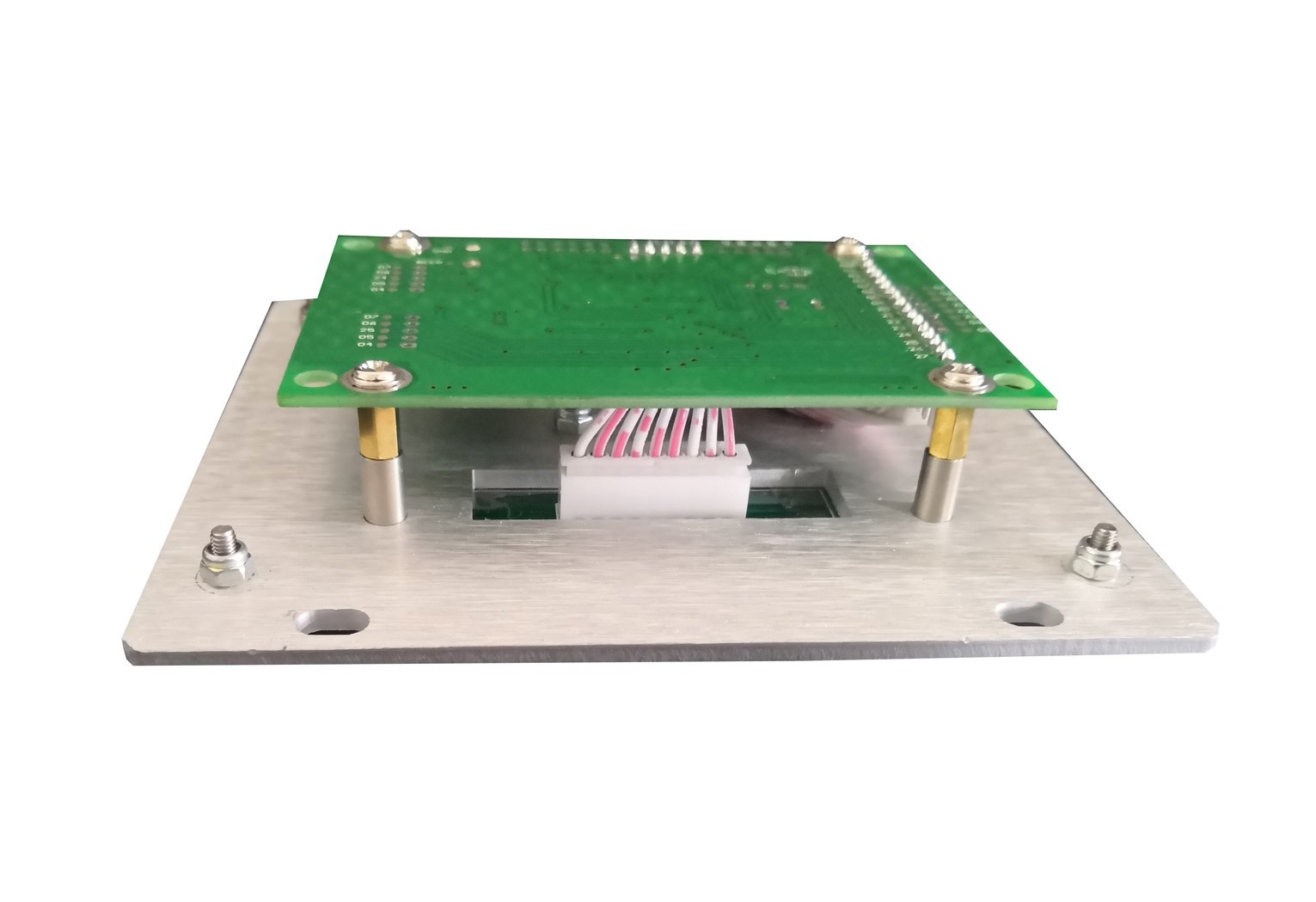

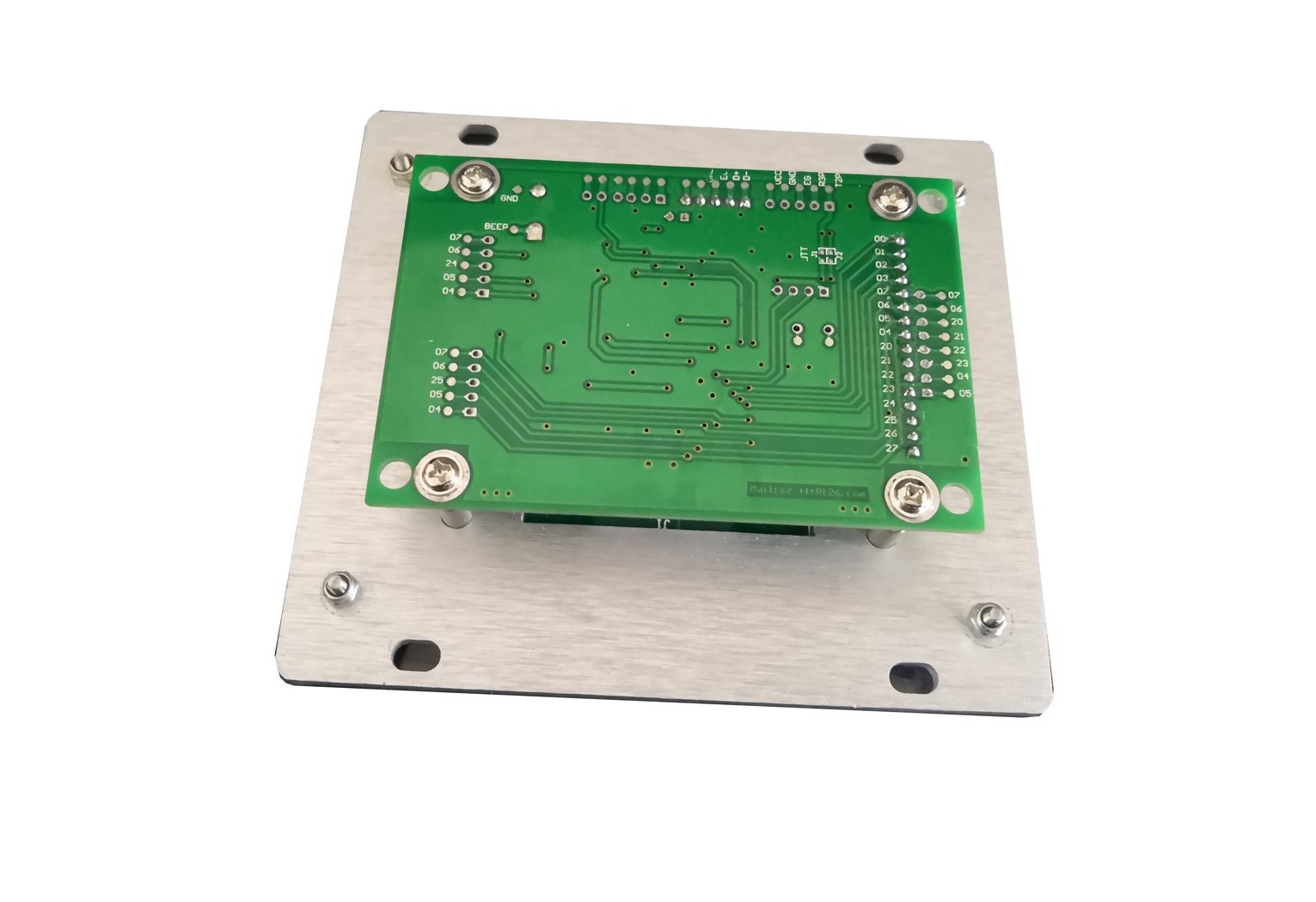

  • 5 x 4 20 keys IP65 compact format vandal proof stainless steel industrial numeric keypad with industrial PCB electronics controller
  • Industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input
  • Lettering: laser engraving
  • Mounting holes on rear stainless steel plate for rear mounting solution,
  • With front panel mounting optional
  • USB, PS2, RS232, UART TTL or dot matrix
  • Front panel: 115.3 x 92mm
  • Gross weight: 0.7KG
  • Switch life: more than 5 million of operation
  • Power supply voltage: 5V DC+/-5%
  • Any customs layout is available upon request with different colors
