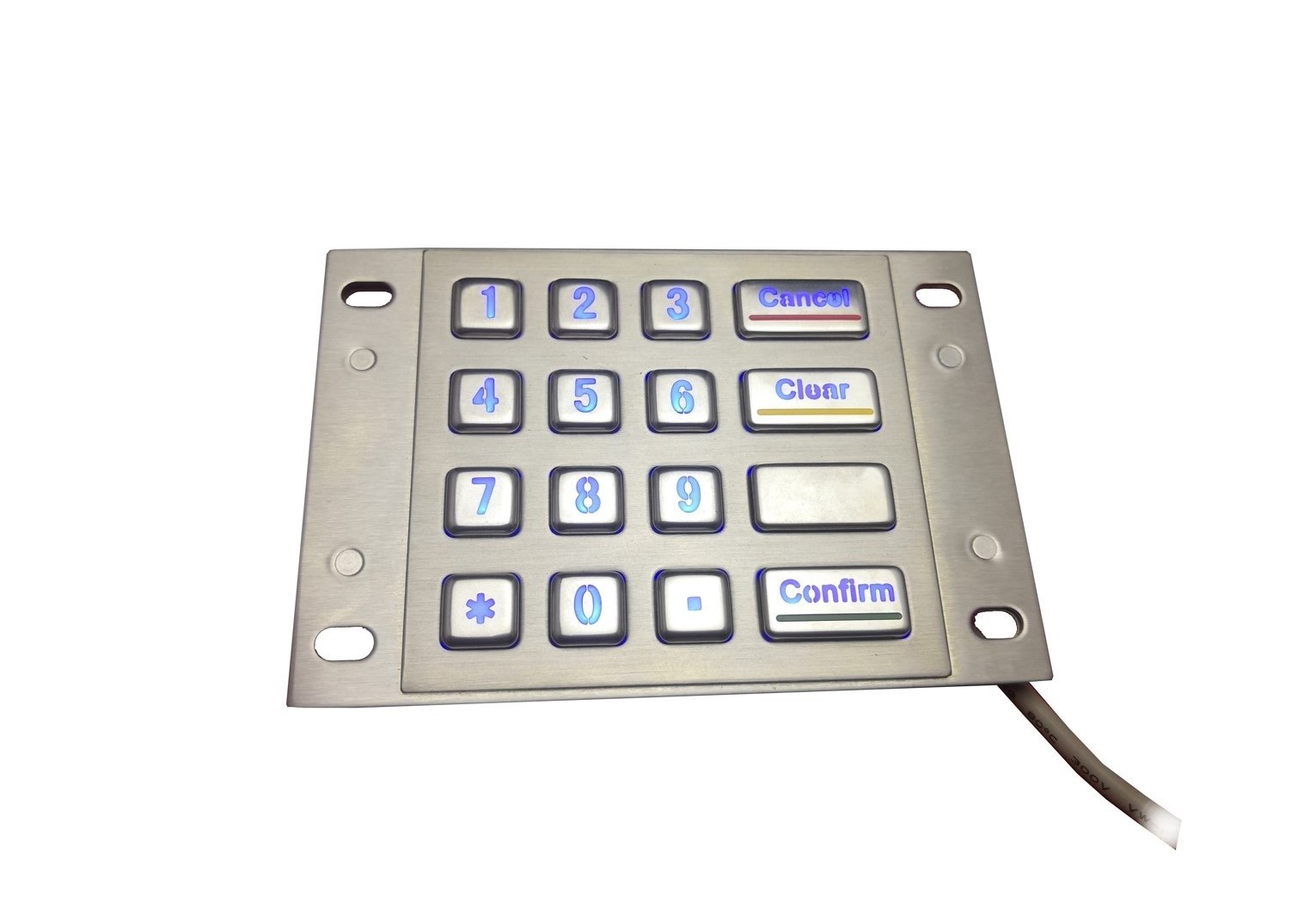

backlight numeric keypad with buzzer P-100KP-BL

energy saving industry stainless steel backlight numeric keypad with 16 button

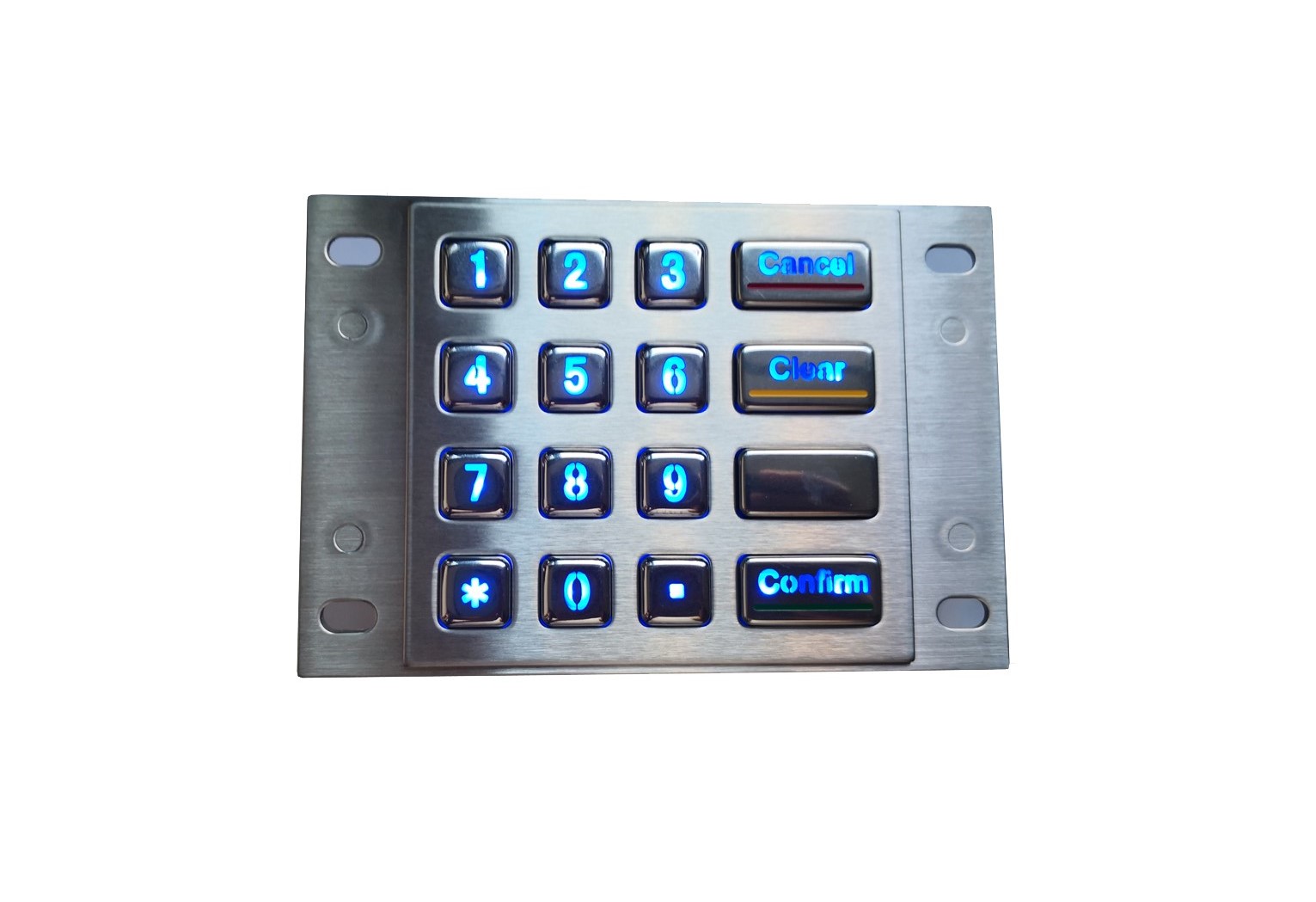

  • Compact design with 16 key backlight numeric keypad with blue LED
  • High quality stainless steel S304 numeric keypad

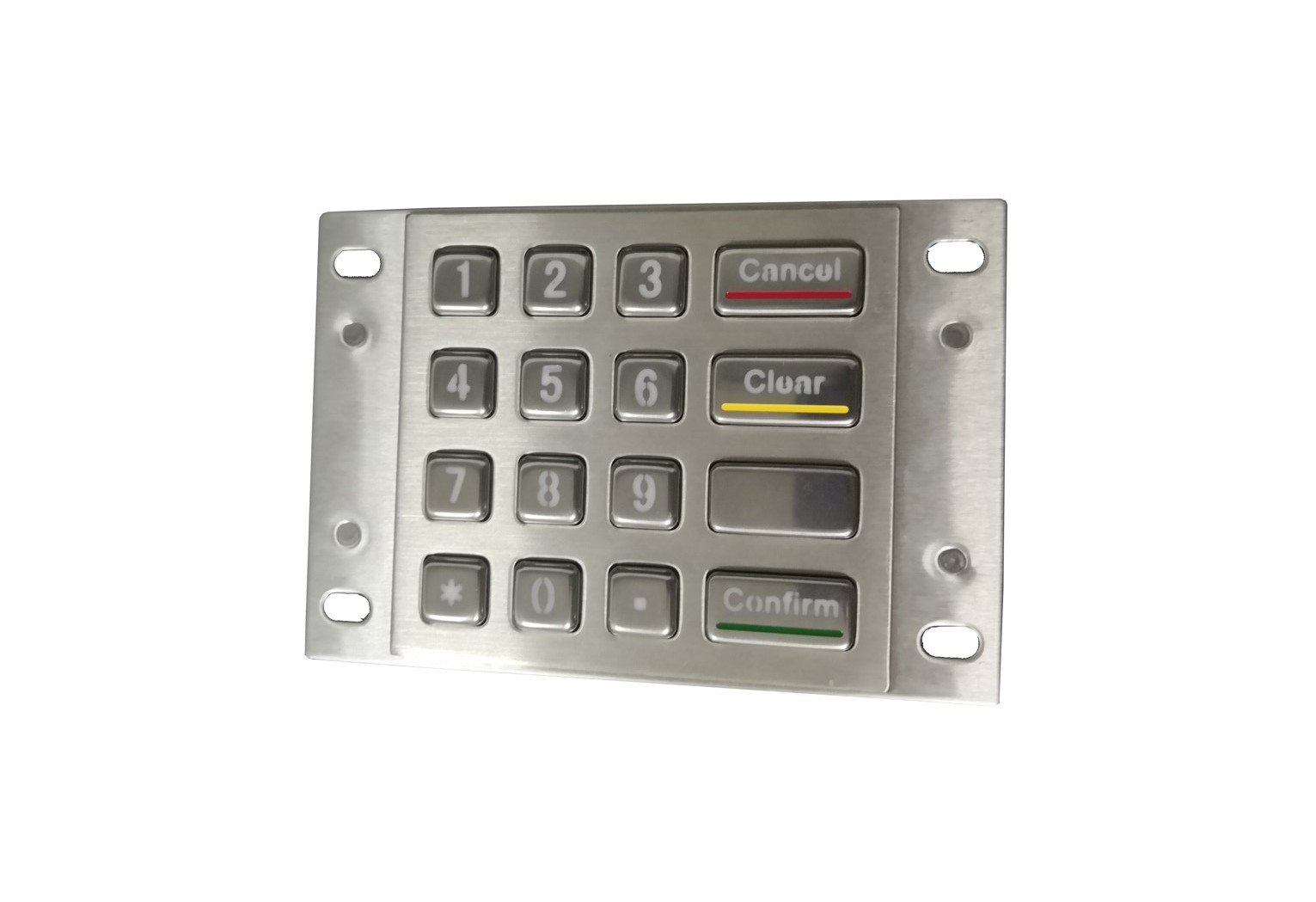

  • The backlight stands by when no operation to save the energy
  • Specially designed for harsh environment, use the brushed stainless steel material, and special water proof design
  • IP 65 protect level, it has good performance of water proof, dust proof and vandalism proof, which make it a good choice for public use or harsh environment.
  • Gold-on-gold dome on gold PCB contact
  • USB, PS2, RS232, dot matrix interface optional
  • Laser engraved characters for excellent durable
  • Reinforced PCB to guarantee the mechanical stability
  • Any language is available without additional charge
  • Key travel: 2 mm long key short stroke
  • Keys witch lifespan: more than 3 million of operations

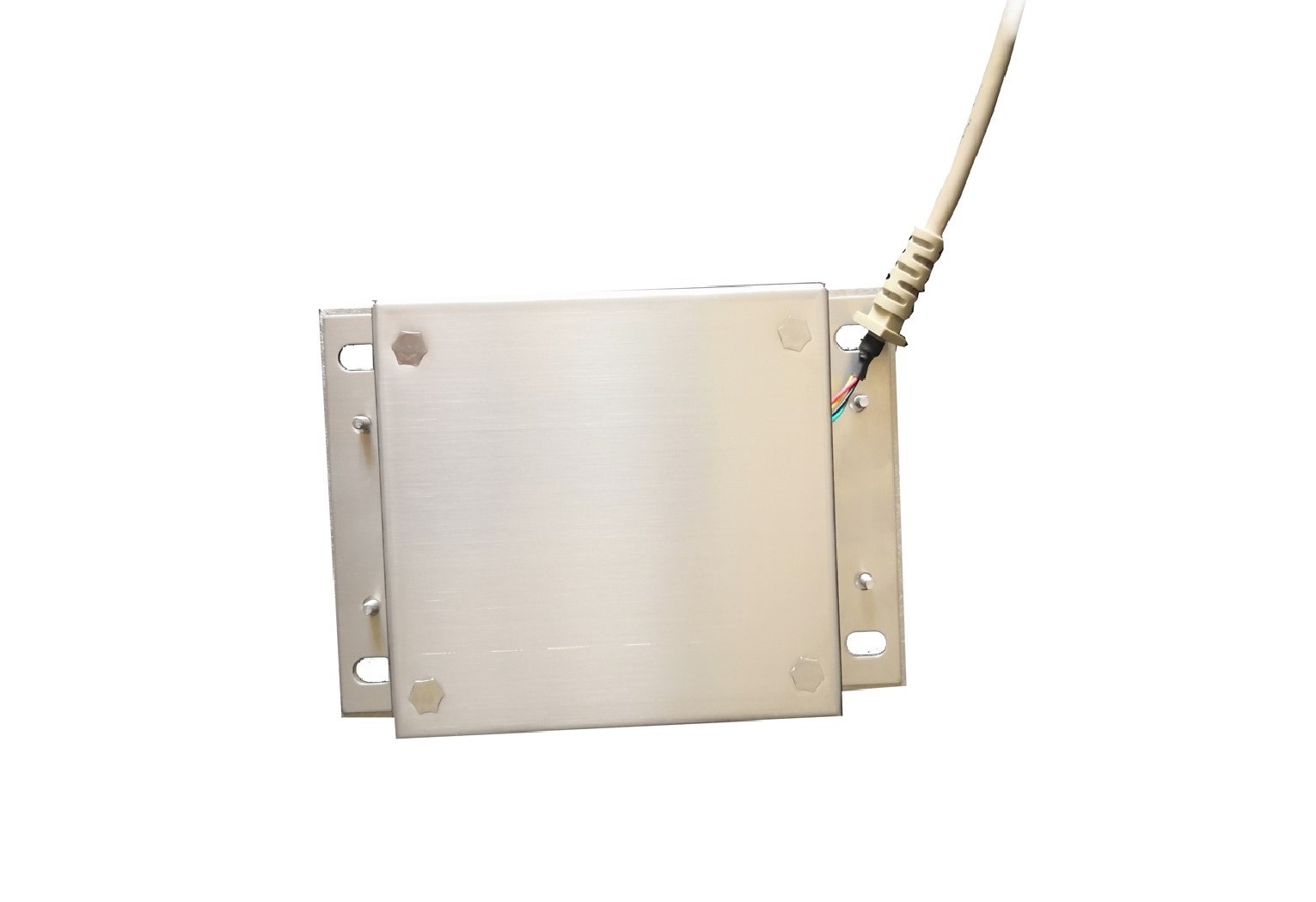

  • Mounting solution: rear panel mounting with four mounting holes
  • Dimensions: 100*100 mm (front panel)
  • Voltage: +5V DC
  • Protection Level: IP65
  • Operating temperature: -20℃ ~+60℃
  • Storage temperature: -30℃ ~ +70 ℃
