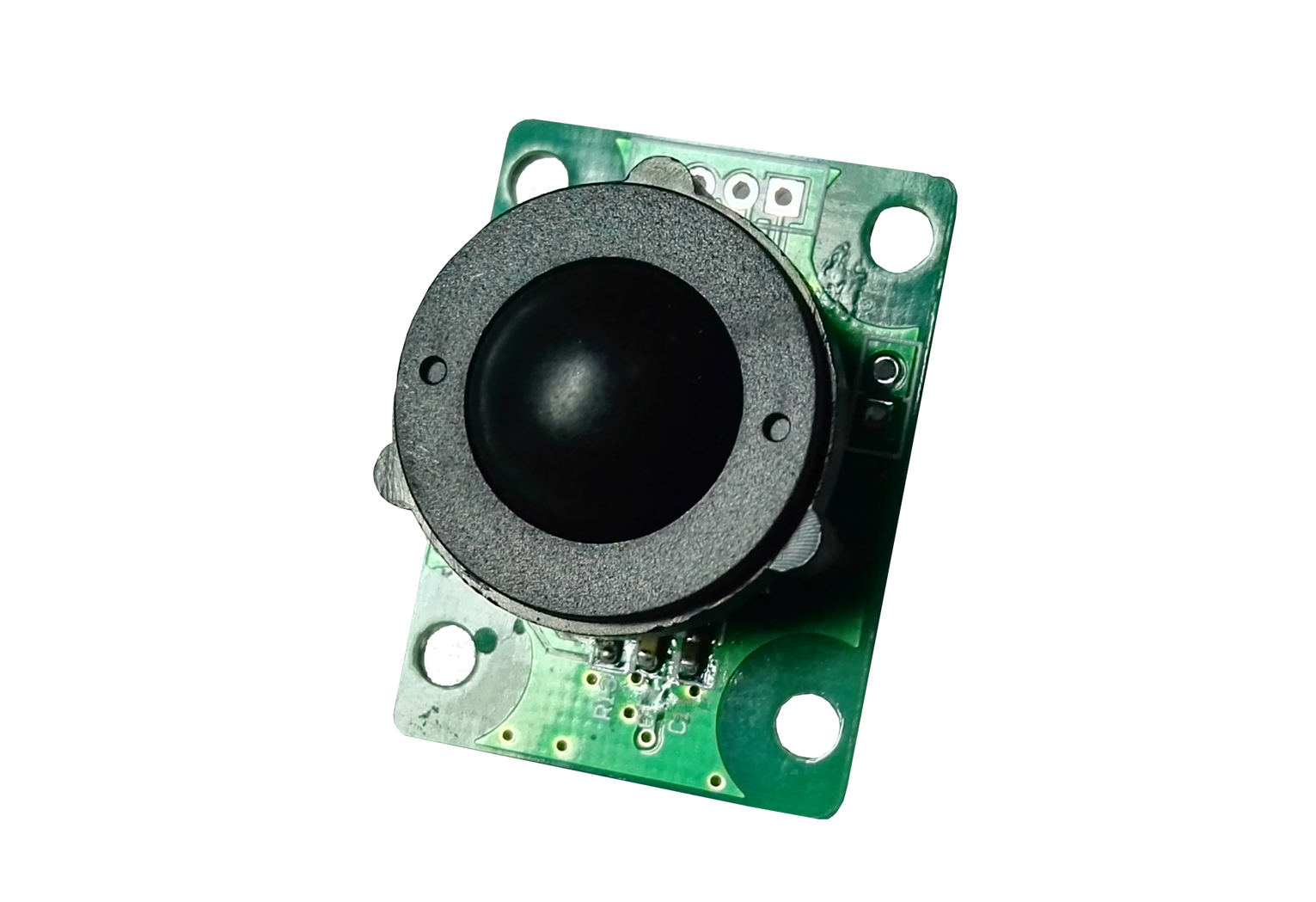

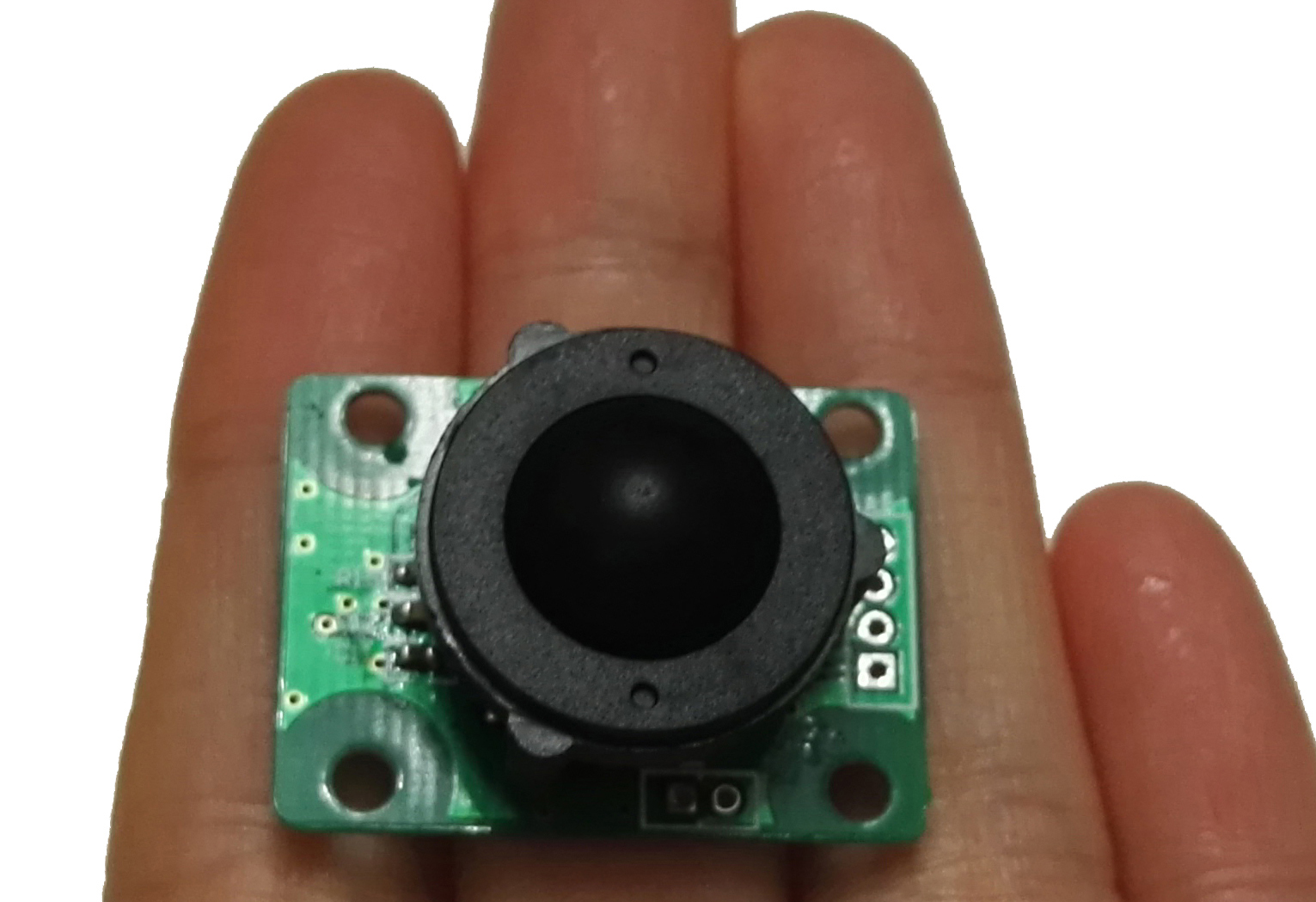

mini trackball P-12-TB

mini petite track ball pointing device with PCB Pin head


  • 100% splashed water proof design, with washable trackball module, ESD protect trackball
  • Use high performance optical sensor
  • Use most stable and high-compatible MCU controller
  • Resolution can be adjust from 100 dpi to 1000 dpi
  • Black color trackball with PCB
  • Compatible with the popular windows OS, and industrial control OS.

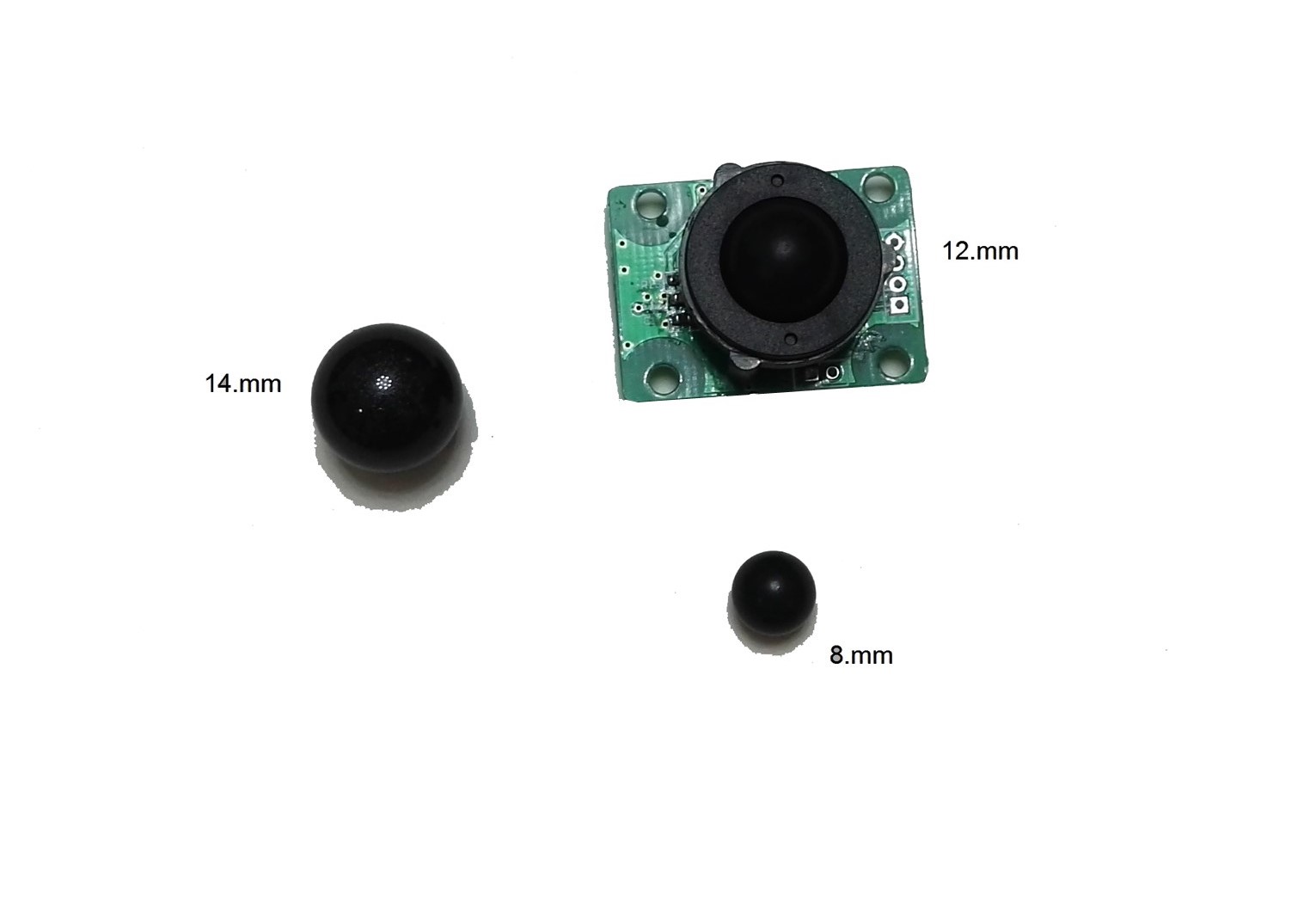

  • Ball diameter: 12 mm
  • Material: high strength phenolic resin (any color)
  • Net Weight: 80g
  • Power supplier: 5VDC ±5% (by communication interface)
  • Communication interface: USB, PS2
  • Environment parameters:
  • Operation temp: -20℃ ~ 60℃
  • Storage temp: -40℃~ 80℃
  • Relative humidity: 30% ~95%


This waterproof water proof and dust proof trackball is mainly use for the medical/dental/food factory/industry/ETC project and other harsh environments etc.
