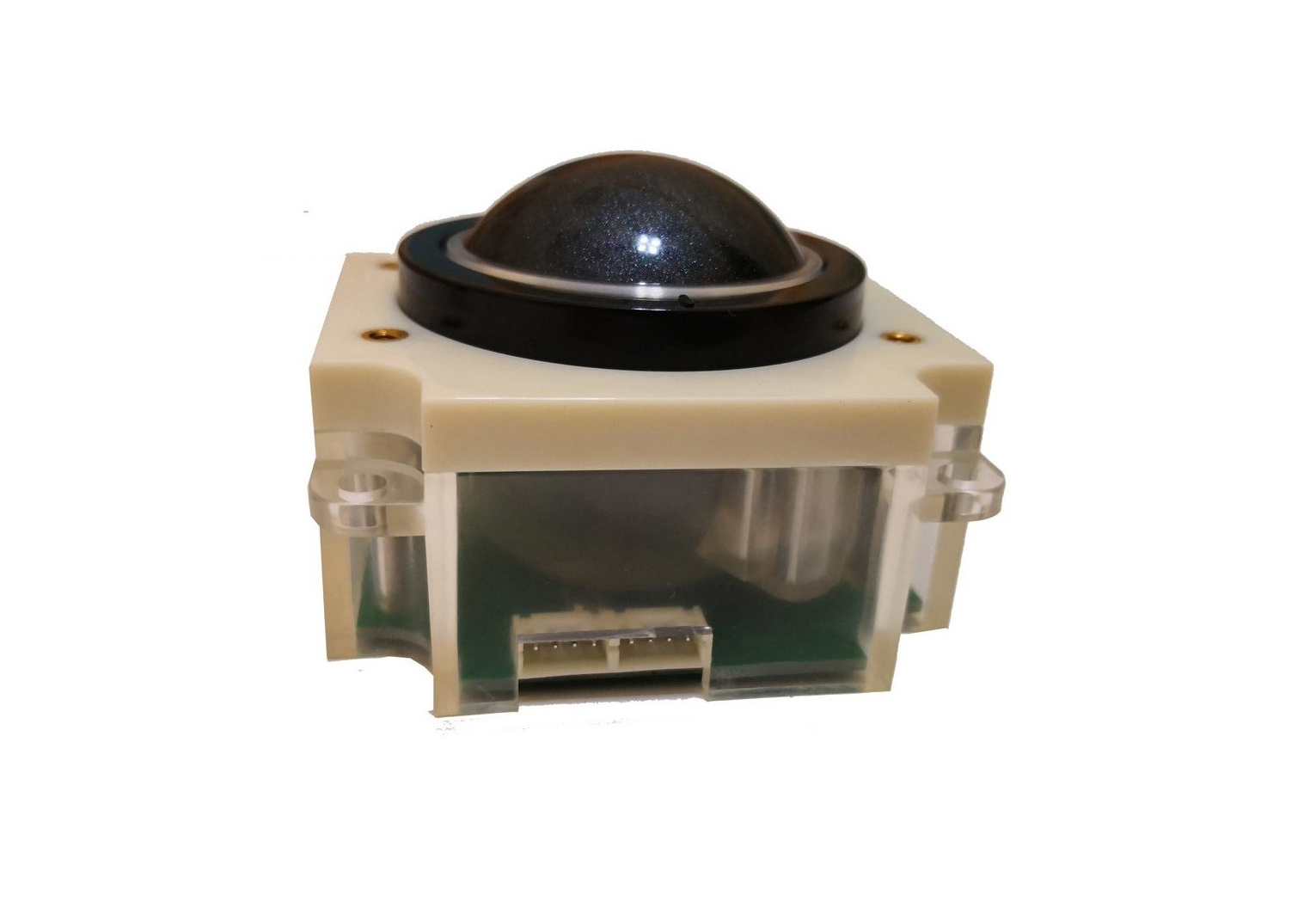

50.mm laser trackball module P-50TB

Harden resin black white 50.mm trackball module pointing device for marine industry


  • ESD 50.mm diameter black or white trackball acting as mouse for military, medical, industrial applications
  • 50.mm laser trackball module with adjustable resolution for industrial, marine application
  • Default 500CPI, with 200CPI, 1000CPI optional

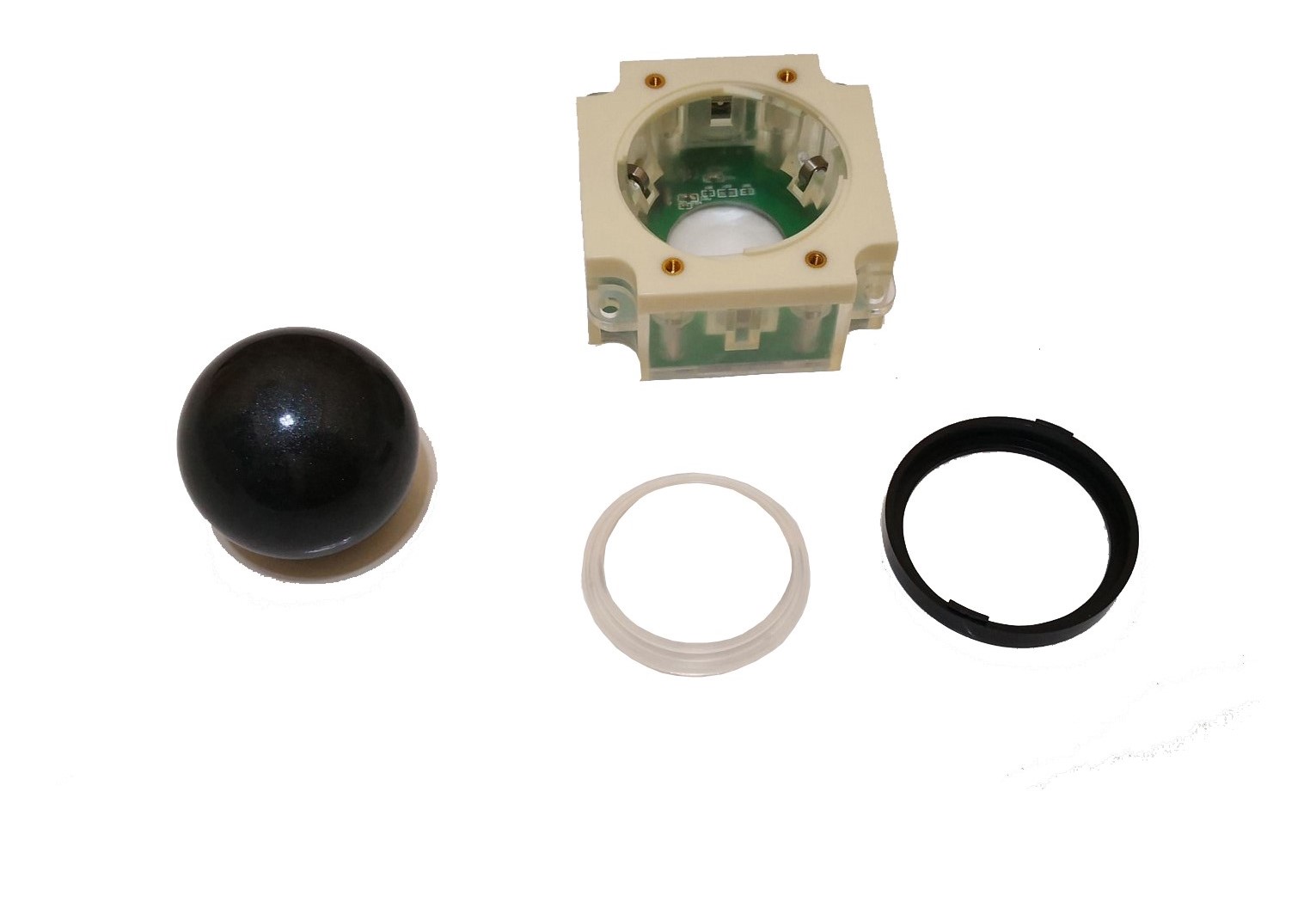

  • Ball part can be taken off to wash/change by unscrewing the decoration ring
  • With rugged harden ABS material
  • With laser sensor
  • USB / PS2 cable available
  • Customs color is available, black or other
  • CE, FCC, ROHS approval trackball
TRACKBALL ELECTRONIC FEATURES:
Protection level: IP65 static
Power supply: 5V DC+/-10%
EMC Standard: EN55022(B)
Resolution: 400Dpi / 800Dpi
Power consuming: ≤1.00W(dynamic) ≤0.2W(static)
TRACKBALL WORKING ENVIRONMENT:
Operating temperature: -10 to +60 degrees
Storage temperature: -20 to +70 degrees
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Trackball reliability: MTBF>20,000h;  MTTR<30min
