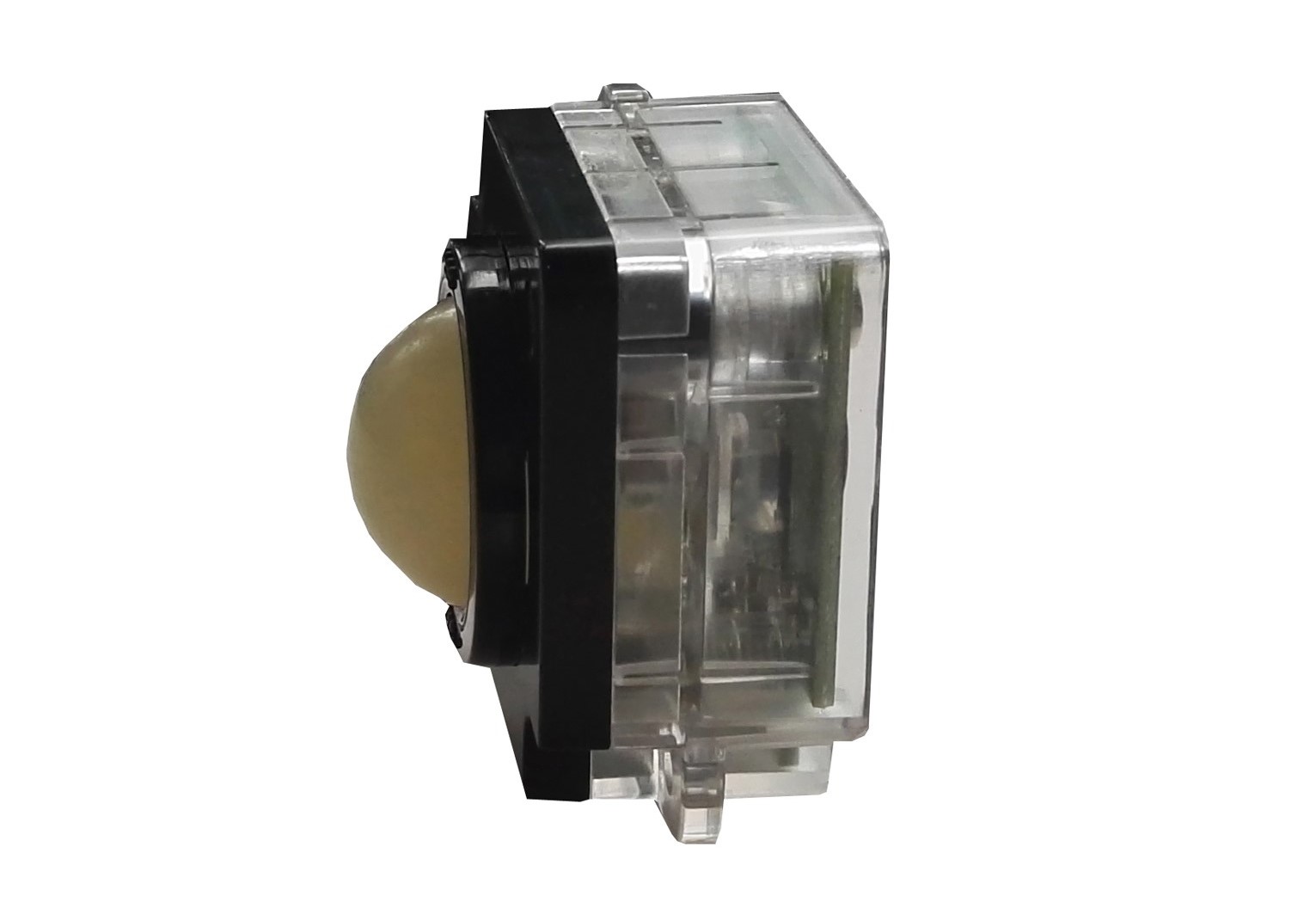

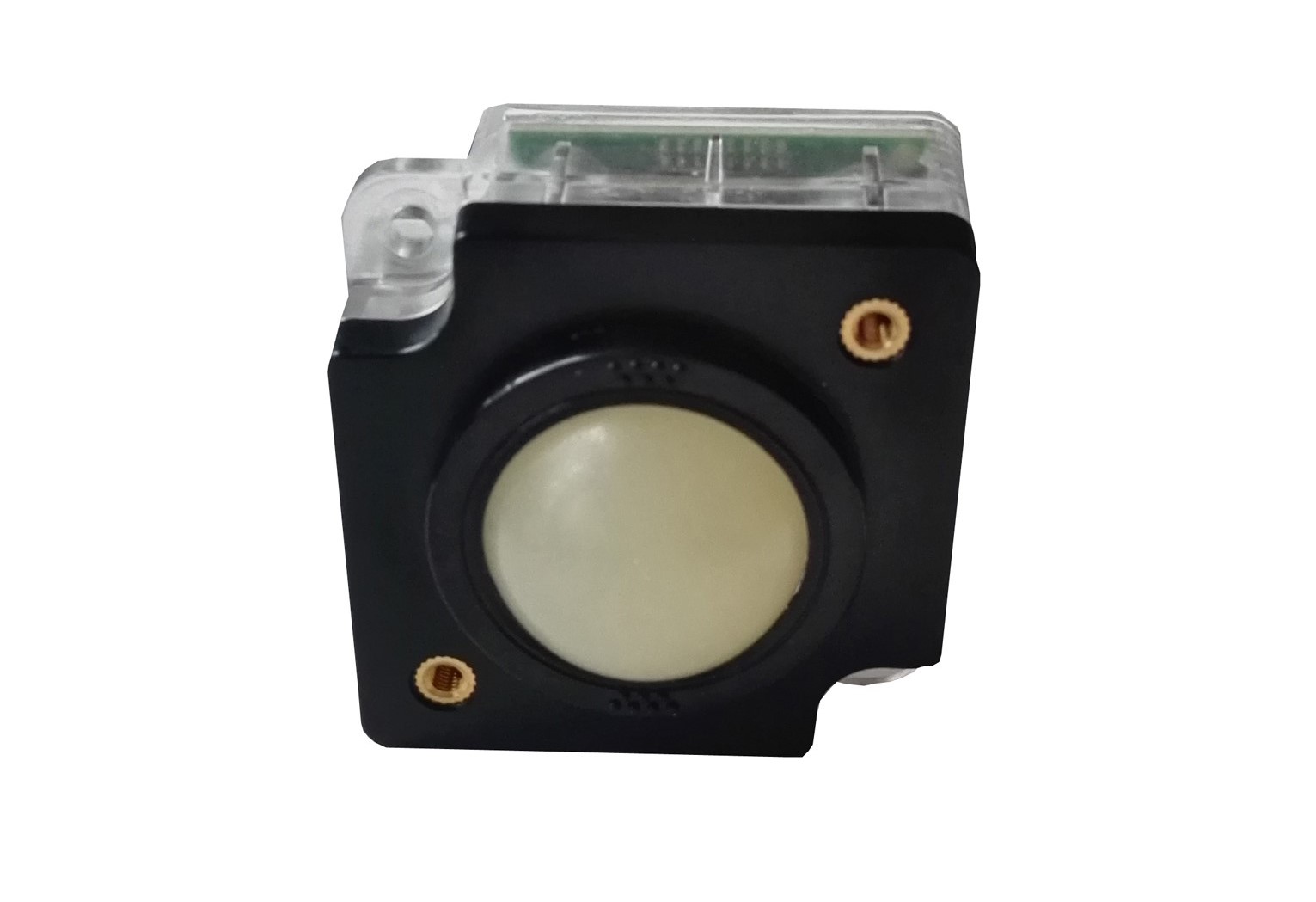

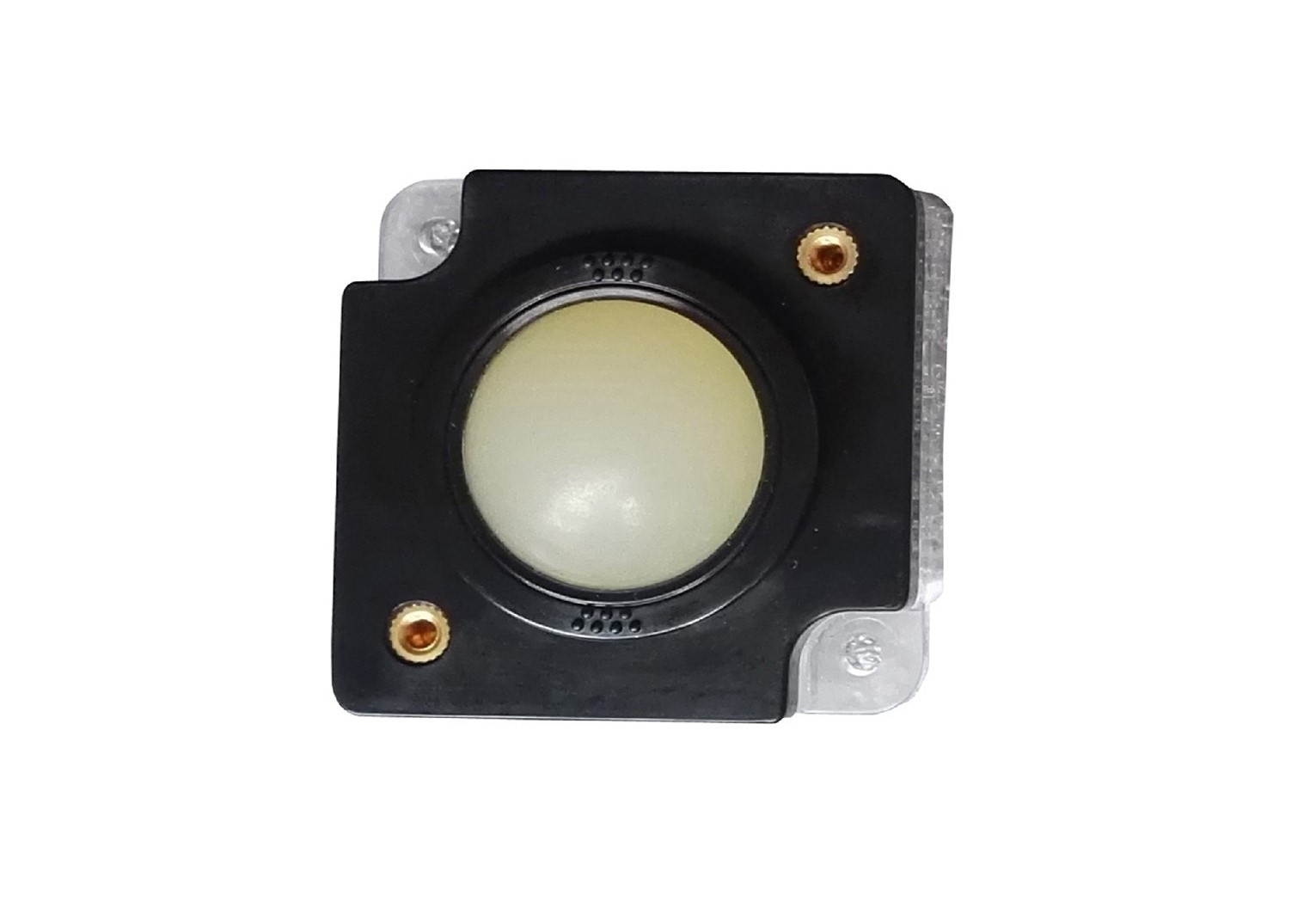

25.mm optical trackball module P-25-OTB

ESD 25.mm optical trackball pointing device with ABS housing


  •  IP65 splashed waterproof, with optical trackball module, ESD protect, with ABS housing
  • Use most stable and high-compatible MCU controller, with smooth operation and rolling
  • Resolution can be to 400DPI to 800DPI
  • Auto-dormant backlight control, only illuminate when scroll the semi-transparent ball
  • Black ball with small steel ball inside is also available, for a better feeling
  • The ball part can be taken off to wash/change by unscrewing the decoration ring
  • Compatible with the popular windows OS, and industrial control OS.
  • EMC standard: EN55022(B)
  • Ball diameter: 25.00mm
  • Material: high strength phenolic resin (customs color)
  • Dimension: 47 x 47mm
  • Net Weight: 120g
  • Power supplier: 4.75v ~ 5.25v (by communication interface)
  • Communication interface: USB, PS2
  • Operation temp: -25℃ ~ 65℃
  • Storage temp: -45℃ ~ 85℃
  • Relative humidity: 30% ~ 95%
This waterproof water proof and dust proof trackball is mainly use for the medical/dental/food factory/ panel control and other industrial environments etc.
