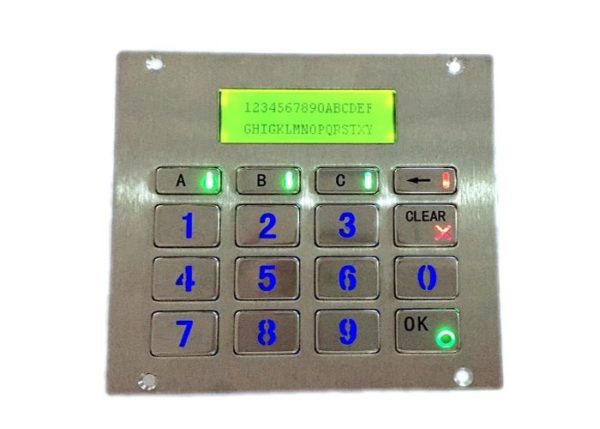

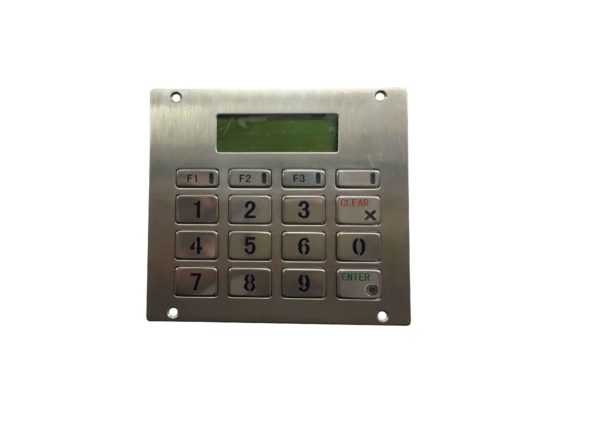

display keypad with 16 keys P-LCD-128

I2C or SPI interface 16 key keypad with LCD display in 2 lines

Description

  • Compact design with 16 keys numeric keypad with LCD Display in 2 lines,
  • Each line with 16 characters, with high quality stainless steel S304 material
  • Specially designed for harsh environment, use the brushed stainless steel material
  • IP 65 water proof, dust proof and vandalism proof, which make it ideal for public use or harsh environment



Detailed Specification

  • Gold-on-gold dome on gold PCB contact, reinforced PCB to guarantee the mechanical stability
  • RS232 or RS485 interface, I2C or SPI optional
  • Laser engraved characters for excellent durable
  • Any language is available without additional charge
  • Yellow or green display
  • Key travel: short key stroke of 0.5mm
  • Keys witch lifespan: more than 5 million of operations

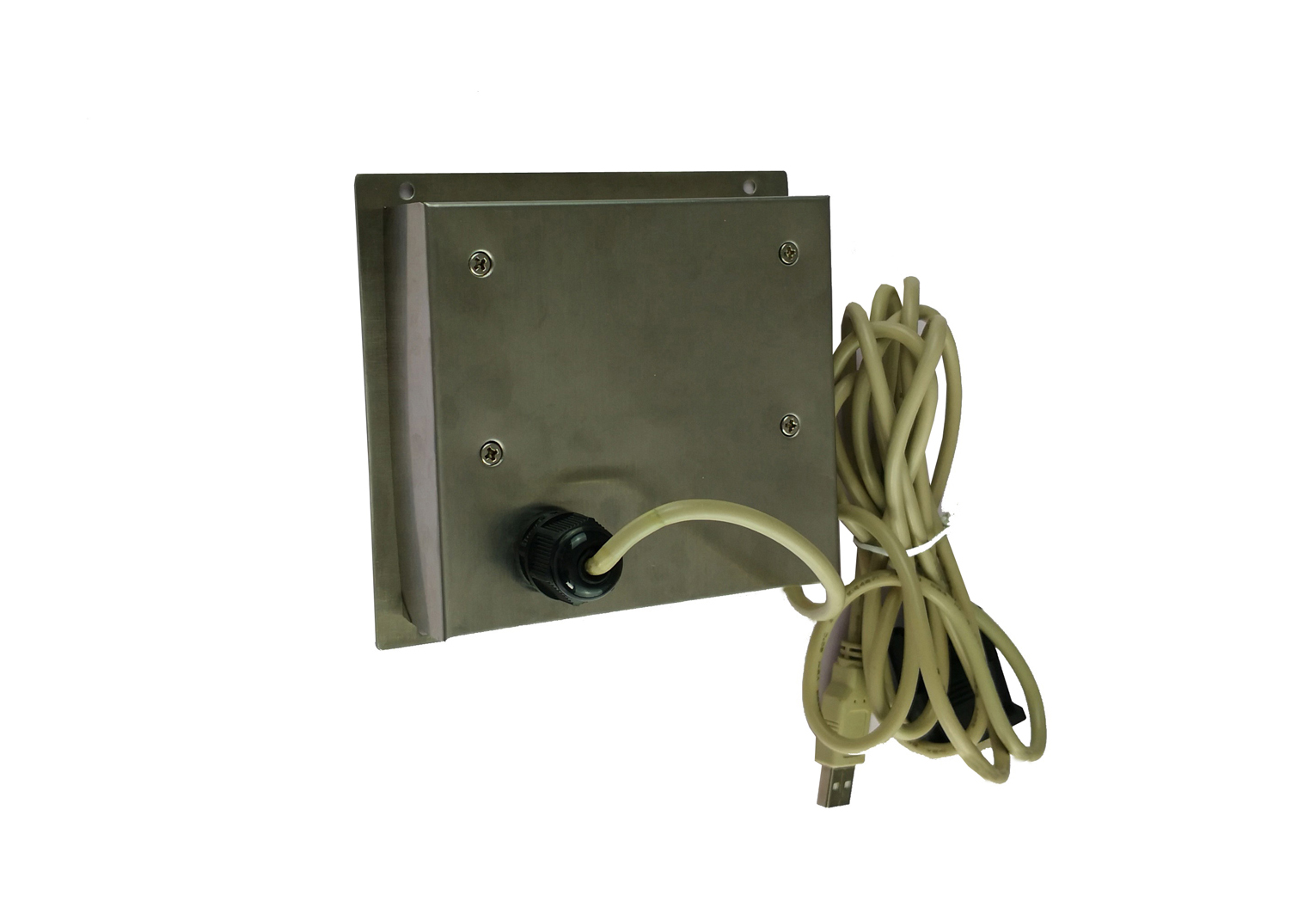

  • Mounting solution: front panel mounting
  • Dimensions: 128.5 x 123.0 (front panel)
  • Voltage: +5V DC or customs
  • Standby current: about 20 mA
  • Protection Level: IP65
  • Operating temperature: -5℃ ~+60℃
  • Storage temperature: -20℃~ +70 ℃
  • Operating relative humidity: 5~90% (condensation)

    Application

  • It is ideal for industrial, home phone system, parking system etc. application, where need to show the number data input.
